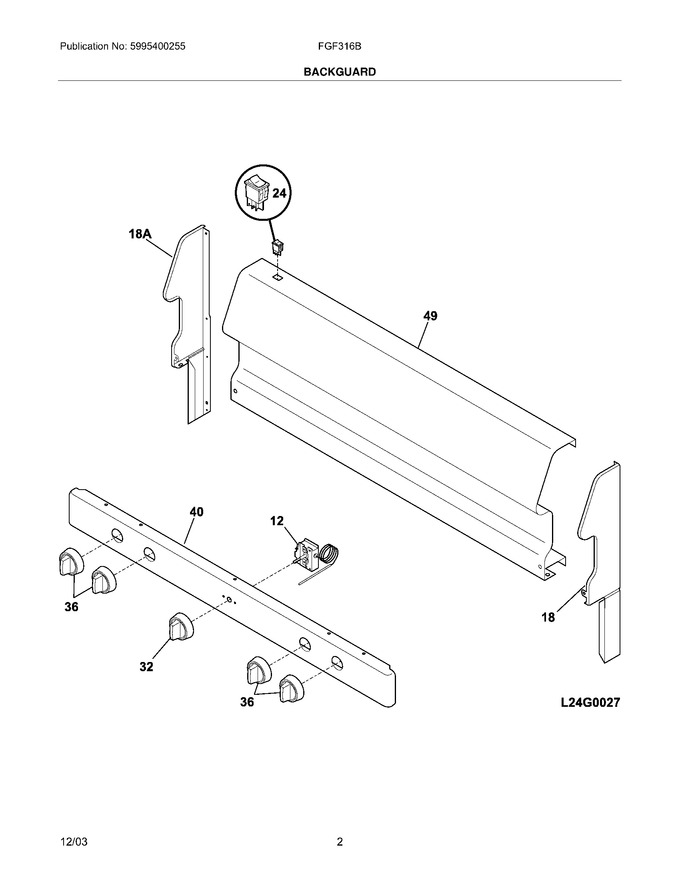

03 - Backguard


05 - Burner


07 - Body


09 - Top/drawer


11 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
18	316263404		End Cap,white ,rh		Appelez-nous	-
19	316263301		Panel,backguard ,white		Appelez-nous	-
32	316102303		Knob,thermostat ,white				$ 61.43
36	316009046		Knob,top Valve ,white ,(4)   (Replaces: 316009009)				$ 51.57
40	316201812		Panel,manifold ,white		Appelez-nous	-
18A	316263405		End Cap,white ,lh		Appelez-nous	-
F12	316032411		Thermostat   (Replaces: 316032404)			Immediately	$ 165.14
F24	5304527842		Switch,oven Light ,white ,rocker   (Replaces: 316118101)			Immediately	$ 16.13
NI	316021109		Screw,8-18 X 0.5 ,black   (Replaces: 316021110)			Immediately	$ 27.50
NI	316021109		Screw`8-18 X 0.5 ,chrome			Immediately	$ 27.50
NI	316519700		Screw,cup Pt ,8-18 X 0.375 ,chrome   (Replaces: 316021108)				$ 10.02
NI	316097602		Insulator		Appelez-nous	-
