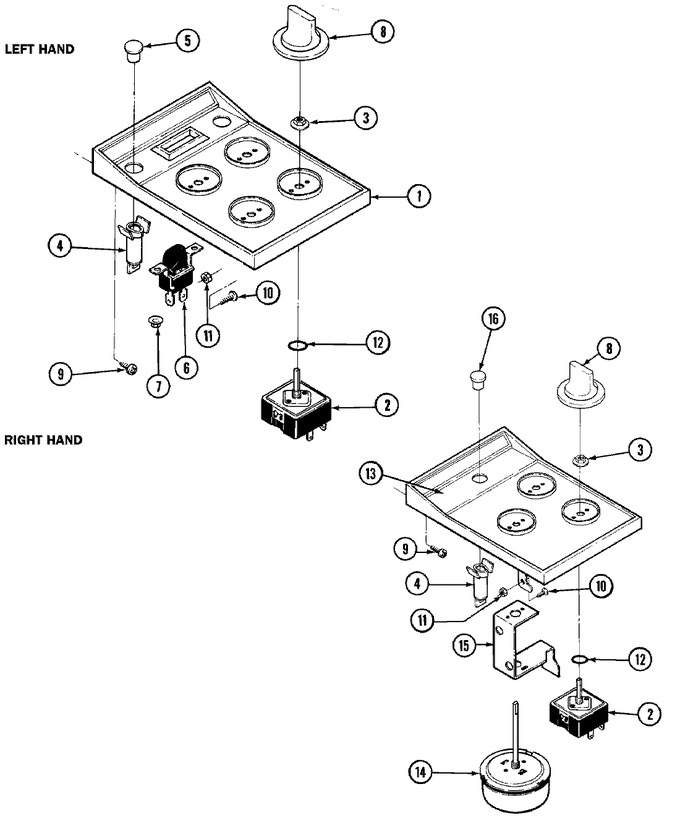

03 - Control Panel
04 - Top Assembly
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 712480 | Escutcheon Assembly (left) | 10 |
|
- | ||||
| 2 | W11120795 | Switch, Infinite (Replaces: Y703147) | 10 |
|
Immediately | $ 84.20 | |||
| 3 | Y712255 | Palnut | 10 |
|
- | ||||
| 4 | 715396 | Pilot Light & Lens | 10 |
|
- | ||||
| 5 | WPY700631 | Lens, Pilot Light (Replaces: Y700631) | 11 |
|
$ 5.09 | ||||
| 5 | Y703849 | Lens, Pilot Light | 10 |
|
- | ||||
| 6 | DE81-10045A | Switch, Fan (Replaces: 703664) | 10 |
|
$ 330.36 | ||||
| 7 | Y705023 | Palnut | 11 |
|
- | ||||
| 7 | 7103P166-60 | Palnut (Replaces: 715500) | 10 |
|
$ 15.91 | ||||
| 8 | 12200035 | Knob, Switch (Replaces: Y704844) | 10 |
|
Immediately | $ 78.40 | |||
| 9 | W11233072 | Screw (Replaces: Y705007) | 10 |
|
Immediately | $ 12.62 | |||
| 9 | Y700834 | Clip | 10 |
|
- | ||||
| 10 | WP488234 | Screw (Replaces: 708861) | 10 |
|
$ 6.07 | ||||
| 11 | WP488130 | Nut (Replaces: Y701396) | 10 |
|
$ 6.27 | ||||
| 12 | Y700833 | O Ring | 10 |
|
- | ||||
| 13 | 712482 | Escutcheon Assembly | 10 |
|
- | ||||
| 14 | WP90767 | Screw (Replaces: 715773) | 10 |
|
Immediately | $ 7.04 | |||
| 14 | Y704845 | Knob, Timer (rt) | 10 |
|
- | ||||
| 14 | 707732 | Timer | 10 |
|
- | ||||
| 15 | 715924 | Bracket, Timer | 10 |
|
- | ||||
| 16 | WPY700631 | Lens, Pilot Light (Replaces: Y700631) | 10 |
|
$ 5.09 | ||||
| 16 | 703523 | Wire, Orange (right) | 10 |
|
- | ||||
| 16 | 712528 | Kit, Estutcheon Wire (left) | 10 |
|
- |
