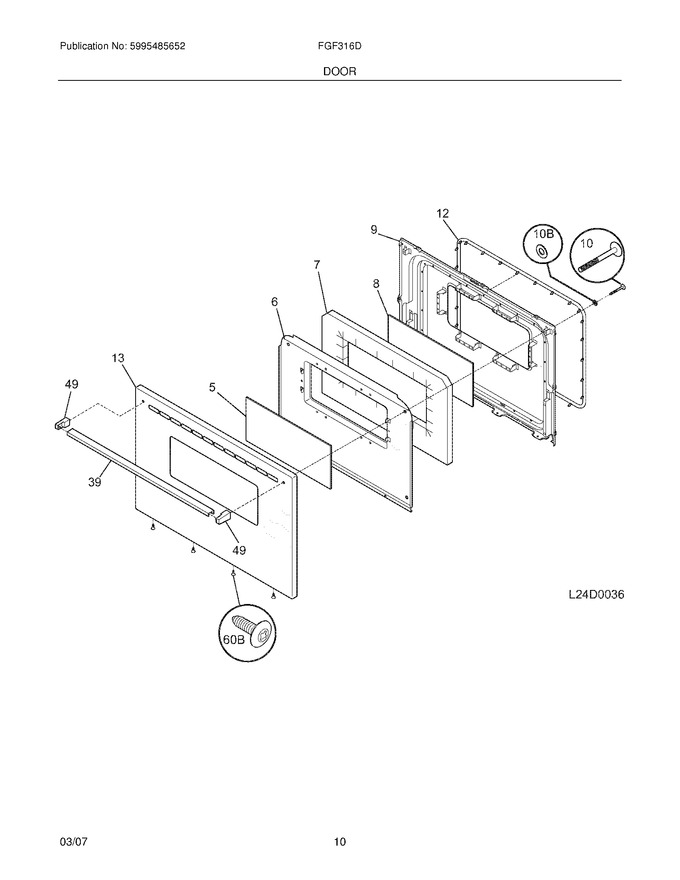

11 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
5	316050307		Glass,oven Door ,white ,outer				$ 186.27
6	316222703		Shield,oven Door ,wool   (Replaces: 316222709)				$ 78.67
7	316236800		Insulation,oven Door		Appelez-nous	-
8	316088600		Glass,oven Door ,inner				$ 85.52
9	316230622		Liner,oven Door				$ 144.38
10	316001009		Screw,waf Hd Sq `10-24 X 1.88 ,(2) ,handle Mtg				$ 15.17
12	316239700		Seal,oven Door			Immediately	$ 152.43
13	316202702		Panel,oven Door ,white		Appelez-nous	-
39	316545301		Handle,oven Door ,white   (Replaces: 316020202)			Immediately	$ 130.85
49	316137000		End Cap,handle ,white ,(2)				$ 64.50
10B	316008401		Washer,3/4 Od X 1/4 Id ,steel				$ 11.34
60B	316021109		Screw,8-18 X 0.5 ,black   (Replaces: 316021110)			Immediately	$ 27.50
NI	5303285179		Screw,wafer Head `8-32t X 0.500 ,black				$ 13.46
NI	316433600		Label,anti-tip		Appelez-nous	-
NI	316245600		Seal,door ,air Gap				$ 48.67
NI	316574603		Foil,1.5`` X 29`` ,aluminum ,clear   (Replaces: 316102207)				$ 21.23
NI	5303271648		Screw,wafer Hd Sq Dr ,8-18ab X 0.5			Immediately	$ 13.46
