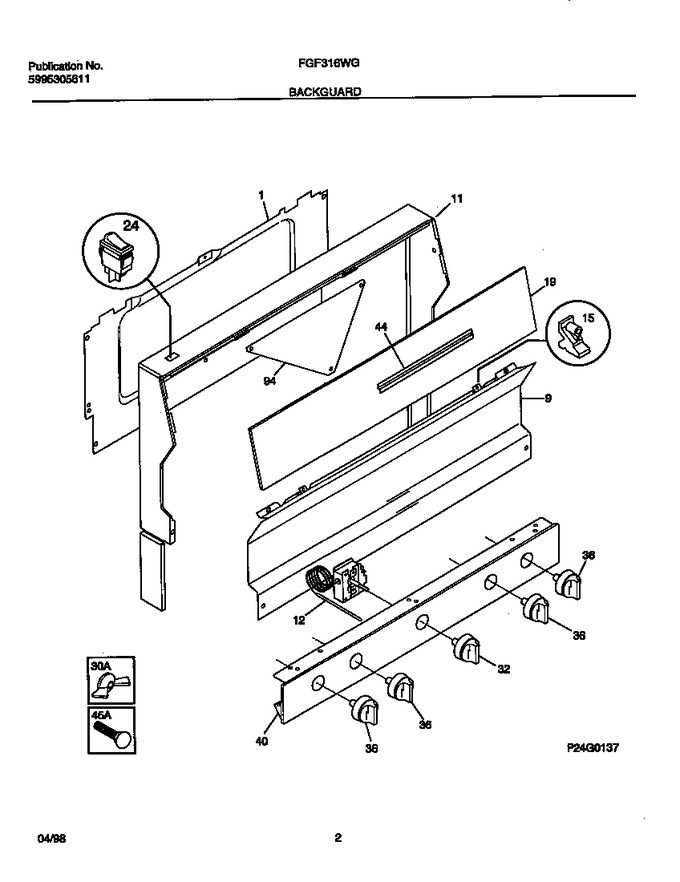

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cover
02 - Backguard
03 - Burner
04 - Body
05 - Top/drawer
06 - Door
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3131123 | Shield-backguard,rear Wall |
|
- | |||||
| 9 | 316043608 | Trim-splasher, White |
|
- | |||||
| 11 | 316083716 | Trim-wrapper,white |
|
- | |||||
| 12 | 316032411 | Thermostat-oven (Replaces: 5303271464) |
|
Immediately | $ 165.14 | ||||
| 15 | 5303131237 | Support-backguard,(2) |
|
- | |||||
| 19 | 316034130 | Panel-control White Frigidaire,metal ,white |
|
- | |||||
| 24 | 5304527842 | Switch-rocker, Oven Light, White (Replaces: 316005607) |
|
Immediately | $ 16.13 | ||||
| 30 | 316064300 | Nut,nylon |
|
- | |||||
| 32 | 316102303 | Knob-thermostat, White (Replaces: 316009113) |
|
$ 61.43 | |||||
| 36 | 316009046 | Knob,top Valve ,white ,(4) (Replaces: 316009009) |
|
$ 51.57 | |||||
| 40 | 316086820 | Panel-manifold, White |
|
- | |||||
| 44 | 3131468 | Bracket, Backguard |
|
- | |||||
| 45 | 316056903 | Bolt-fastener,nylon ,white |
|
- | |||||
| 94 | 316111300 | Stiffener-bg,metal ,zinc |
|
- | |||||
| *76440 | 3201240 | Tube-burner Assy |
|
- |
