SELECT A DIAGRAM

01 - Cover


02 - Backguard


03 - Backguard


04 - Burner


05 - Body


06 - Top/drawer


07 - Door

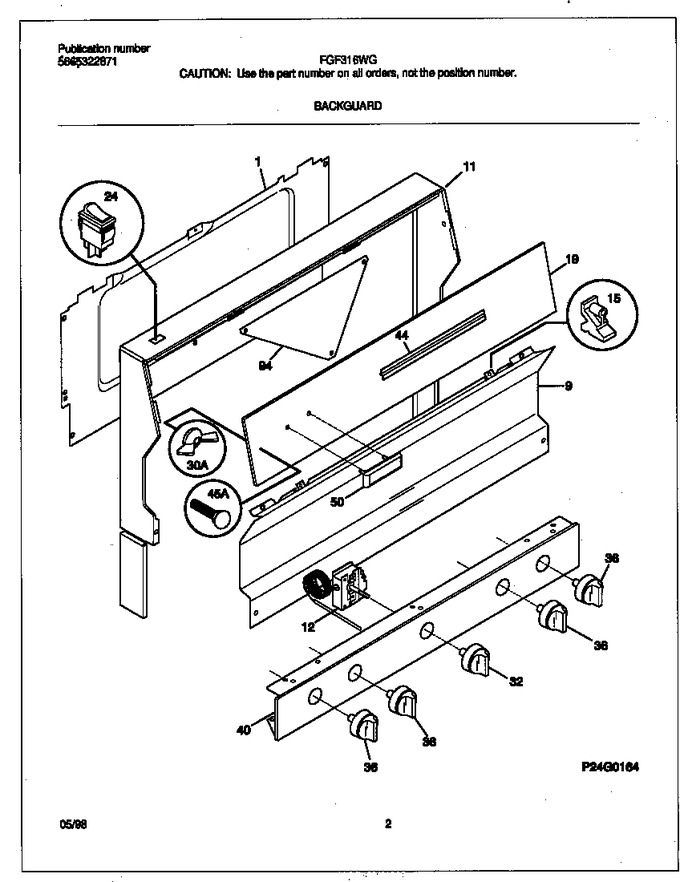

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
9	316043608		Trim-splasher, White		Appelez-nous	-
12	316032411		Thermostat   (Replaces: 316032404)			Immediately	$ 165.14
15	5303131237		Support-backguard,(2)		Appelez-nous	-
19	316034130		Panel-control White Frigidaire,metal ,		Appelez-nous	-
24	5304527842		Switch-rocker, Oven Light ,white   (Replaces: 316118101)			Immediately	$ 16.13
30	316064300		Nut,nylon		Appelez-nous	-
32	316102303		Knob-thermostat,black				$ 61.43
36	316009046		Knob,top Valve ,white ,(4)   (Replaces: 316009009)				$ 51.57
40	316086863		Panel-manifold,white		Appelez-nous	-
44	3131468		Bracket, Backguard		Appelez-nous	-
45	316056903		Bolt-fastener,nylon ,white		Appelez-nous	-
94	316111300		Stiffener-bg,metal ,zinc		Appelez-nous	-
*35960	316020101		End Cap-handle, White , (2)		Appelez-nous	-
*35961	316001821		Harness-ignitor		Appelez-nous	-
*35962	316519700		Screw, Cup Pt, 8-18 X 3/8, Hinge   (Replaces: 316021108)				$ 10.02
*35963	316021109		Screw-8-18x1/2 Tr Sqd Black   (Replaces: 316021110)			Immediately	$ 27.50
*35964	316097602		Insulator		Appelez-nous	-
*35965	316105805		Installation Instructions		Appelez-nous	-
*35966	316112500		Template, Anti-tip Bracket				$ 3.55

    View Diagram in Separate Window       Print Part List
