SELECT A DIAGRAM

01 - Cover


02 - Backguard


03 - Burner


04 - Body

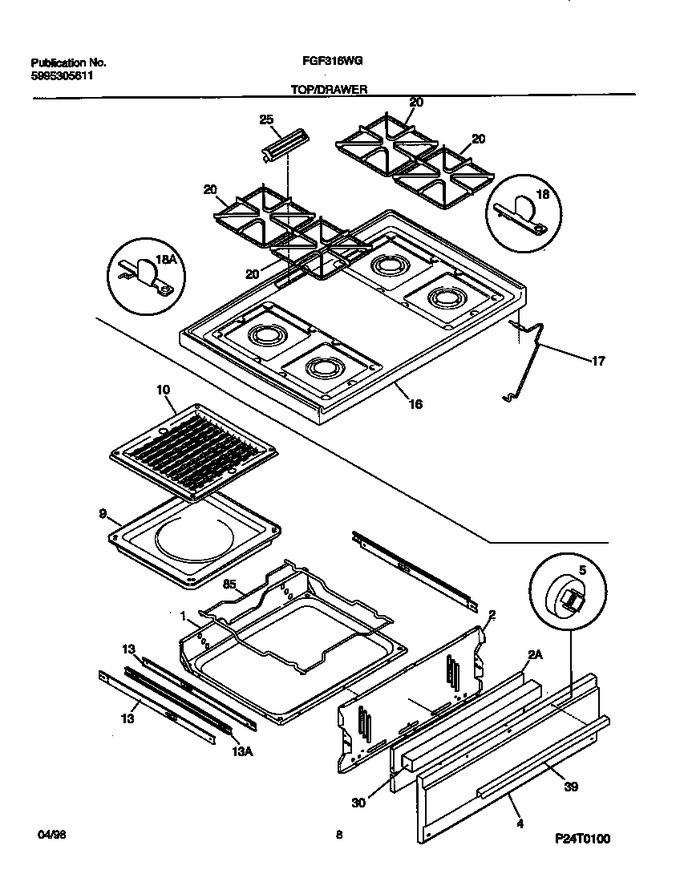

05 - Top/drawer


06 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316110401		Carriage-broiler,enameled		Appelez-nous	-
4	316056206		Panel,drawer ,almond		Appelez-nous	-
5	3131387		Fastener-spacer, Push-in Nut, Nylon		Appelez-nous	-
9	5303013568		Pan-broiler		Appelez-nous	-
10	5303131356		Insert-broiler Pan		Appelez-nous	-
13	316111500		Glide Low Broil Outer		Appelez-nous	-
13	316111600		Glide-low Broil,inner		Appelez-nous	-
16	316104402		Maintop-panel Sl Open V Sq Alm,metal ,enamel,almond		Appelez-nous	-
17	316066900		Rod-maintop Support				$ 66.31
18	08067747		Bracket-hinge,main Top Rh		Appelez-nous	-
18	08067746		Bracket-hinge,main Top Lh		Appelez-nous	-
20	316088900		Grate, Black, (4)		Appelez-nous	-
25	316104500		Cover-vent Opening,metal ,chrome		Appelez-nous	-
30	316111400		Insulation-low Broil,insulation		Appelez-nous	-
39	316019508		Handle,drawer ,almond		Appelez-nous	-
43	316110101		Liner-low Broil,enameled		Appelez-nous	-
44	3131903		Bumper				$ 55.36
60	316089500		Screw, 10-16 X .486, Safety Valve, Handle, (4)				$ 13.46
85	316110500		Rack,warmer Drawer		Appelez-nous	-
*76456	316021113		Screw-drawer Pnl		Appelez-nous	-
*76457	316021109		Screw,hex, 8-18 X 3/8, Back\bodyside   (Replaces: 316021105)			Immediately	$ 27.50
*76458	316519700		Screw,cup Pt ,8-18 X 3/8 ,hinge ,ind Lght Brkt,manifold   (Replaces: 316021108)				$ 10.02
*76459	5303280311		Screw, Waf Hd Sdr, 10-32 X 5/16, (2)				$ 6.62
