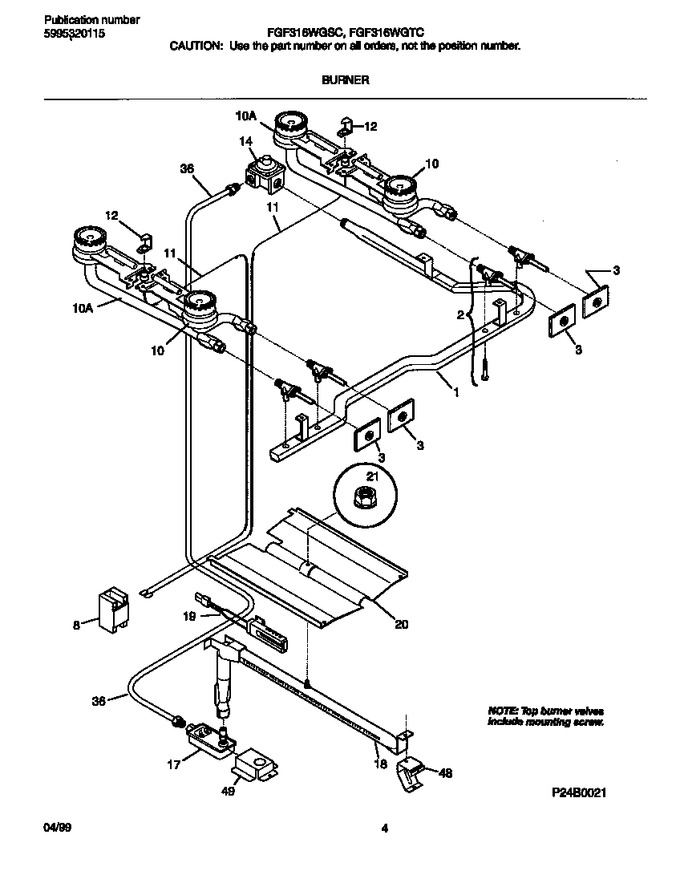

03 - Burner


04 - Body


05 - Top/drawer


06 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316113500		Manifold-pipe				$ 93.50
2	316098600		Valve-top Burner, 2-position, (4)		Appelez-nous	-
3	316103601		Switch-ignitor, (4)		Appelez-nous	-
8	5303912606		Spark Module				$ 134.67
10	5304506427		Burner-top, Front   (Replaces: 316039002)				$ 101.63
10	5304506426		Burner-top, Rear   (Replaces: 316039003)				$ 100.05
11	316081700		Ignitor-top Burner, 33``		Appelez-nous	-
11	316081701		Ignitor-top Burner, 50``				$ 62.69
12	3016993		Retainer-ignitor		Appelez-nous	-
14	316082900		Regulator, Pressure				$ 563.58
17	3203459		Valve-safety				$ 303.64
18	3131439		Burner-oven				$ 204.59
19	5303935066		Ignitor-oven			Immediately	$ 59.58
20	3203265		Baffle,oven Burner		Appelez-nous	-
21	154079601		Nut,hex Head Sems   (Replaces: 5303013272)				$ 0.41
36	316083000		Tubing, 3/8, Alum				$ 121.49
48	3018603		Bracket,support ,oven Burner		Appelez-nous	-
49	3131438		Bracket, Safety Valve		Appelez-nous	-
*07325	5303271648		Screw, Wafer Hd Sq Dr, 8-18(ab) X 1/2			Immediately	$ 13.46
*07326	316048200		Screw-,hex Washer Head ,1/4-20 X 0.31 ,w/gasket		Appelez-nous	-
*07327	316021104		Screw-regulator/brkt,hex ,8-18 X 3/8 ,nick, 3				$ 7.79
