SELECT A DIAGRAM

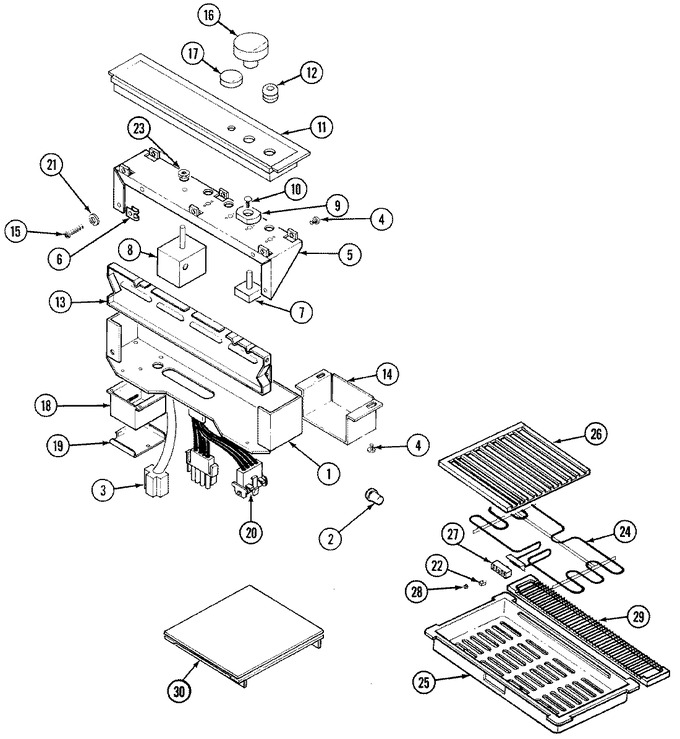

01 - Control Panel
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 706055 | Box, Control | 81 |
|
- | ||||
| 2 | Y705273 | Connector, Crimp | 81 |
|
- | ||||
| 3 | Y706084 | Cord, Receptacle | 81 |
|
- | ||||
| 4 | WP71001171 | Screw, Ground (Replaces: Y703817) | 81 |
|
$ 6.26 | ||||
| 4 | Y702696 | Strain, Relief | 81 |
|
- | ||||
| 4 | W11233072 | Screw (Replaces: Y04100110) | 81 |
|
Immediately | $ 12.62 | |||
| 5 | 04100116 | Plate, Switch | 81 |
|
- | ||||
| 6 | Y700556 | Clip, J | 81 |
|
- | ||||
| 7 | W11120791 | Switch, Infinite (Replaces: 703650) | 81 |
|
Immediately | $ 98.55 | |||
| 8 | 706171 | Control, Fan | 81 |
|
- | ||||
| 9 | Y706061 | Box, Light | 81 |
|
$ 51.50 | ||||
| 10 | Y704864 | Screw | 81 |
|
- | ||||
| 11 | 04100265 | Glass, Frame (white) | 81 |
|
- | ||||
| 12 | Y706103 | Grommet, Fan Switch | 81 |
|
$ 5.49 | ||||
| 12 | WPY706102 | Grommet, Infinite Switch (Replaces: Y706102) | 81 |
|
$ 6.78 | ||||
| 12 | Y706091 | Wire, Pilot Light | 81 |
|
- | ||||
| 13 | 706026 | Divider | 81 |
|
- | ||||
| 14 | Y706118 | Cover, Wire Harness | 81 |
|
- | ||||
| 15 | WPY706189 | Screw (Replaces: Y706189) | 81 |
|
Immediately | $ 6.47 | |||
| 15 | 706113 | Screw | 81 |
|
- | ||||
| 16 | Y706097 | Knob, Fan Switch (gry) | 81 |
|
$ 14.56 | ||||
| 17 | Y706096 | Knob, Infinite Switch (gray) | 81 |
|
$ 28.06 | ||||
| 18 | Y706173 | Box, Junction | 81 |
|
- | ||||
| 19 | Y706174 | Cover, Junction Box | 81 |
|
- | ||||
| 19 | 706065 | Wire, White | 81 |
|
- | ||||
| 20 | Y04100119 | Harness, Control | 81 |
|
- | ||||
| 20 | Y706088 | Harness, Double | 81 |
|
- | ||||
| 21 | Y700446 | Washer | 81 |
|
$ 5.27 | ||||
| 22 | Y700450 | Clip, Shunt | 81 |
|
$ 9.51 | ||||
| 23 | Y705274 | Insulator, Splice Cap | 81 |
|
- | ||||
| 24 | Y04100124 | Element, Grill (Replaces: Y706013) | 81 |
|
$ 155.57 | ||||
| 25 | Y706003 | Liner, Pan | 81 |
|
- | ||||
| 26 | Y706059 | Grate, Grill (excalibur) | 81 |
|
$ 119.79 | ||||
| 27 | WPY708730 | Block, Terminal (Replaces: Y708730) | 81 |
|
Immediately | $ 87.44 | |||
| 28 | Y708862 | Nut, Speed | 81 |
|
$ 13.08 | ||||
| 29 | Y706115 | Grill, Air (wht) | 81 |
|
- | ||||
| 30 | 12200018 | Cover, Grill (white) | 81 |
|
- |
