SELECT A DIAGRAM

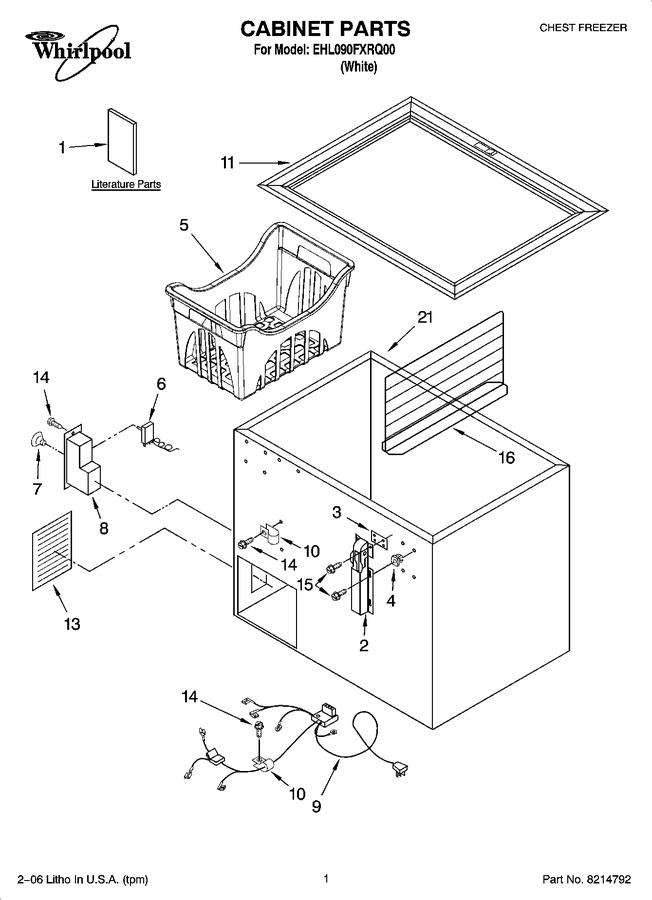

01 - Cabinet Parts


02 - Door Parts


03 - Unit Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	8210431		Owners Manual		Appelez-nous	-
1	8210335		Energy Guide/tag		Appelez-nous	-
2	4356490		Hinge Assembly				$ 211.36
3	1-17548-006		Spacer, Hinge   (Replaces: 4356463)				$ 18.64
4	4356321		Plastic, Grommet				$ 11.72
5	8210333		Basket (2)		Appelez-nous	-
6	WP4-35940-001		Thermostat   (Replaces: 8210276)				$ 148.16
7	4356769		Knob, Thermostat		Appelez-nous	-
8	W10682894		Control Box   (Replaces: 8210234)		Appelez-nous	-
9	4-35130-004		Harness, External Wiring   (Replaces: 4356743)				$ 209.65
10	488946		Clip, Plastic   (Replaces: 4356643)				$ 18.41
11	8210334		Breaker Trim		Appelez-nous	-
13	4356622		Access Panel				$ 70.79
14	3-24004-049		Screw   (Replaces: 4356583)		Appelez-nous	-
15	4356491		Screw		Appelez-nous	-
16	4356731		Divider (optional)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
