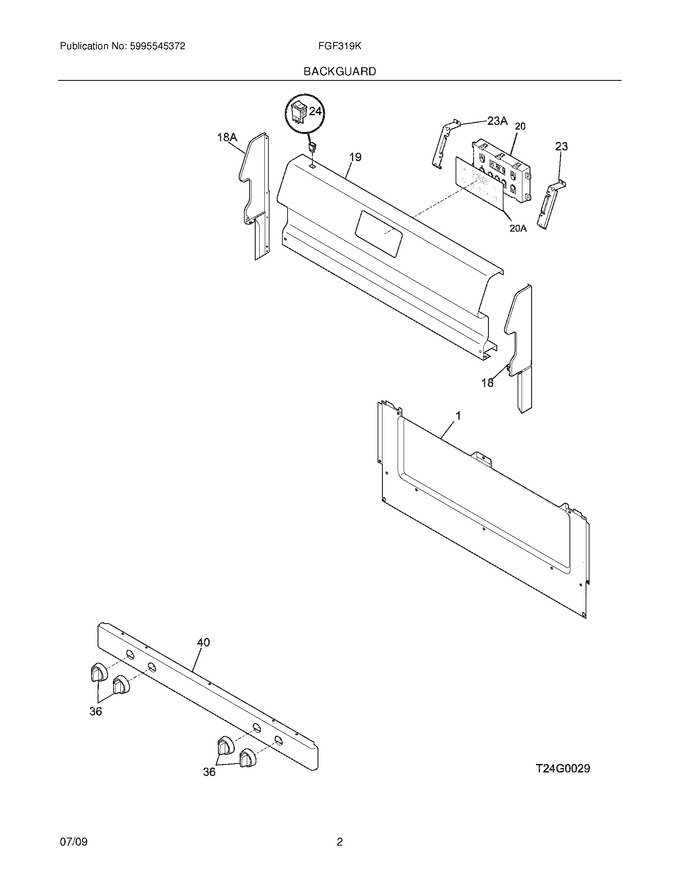

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5303289640		Shield-backguard,rear Wall				$ 144.64
18	316263404		End Cap,white ,rh		Appelez-nous	-
19	316263369		Panel,backguard ,white		Appelez-nous	-
23	316263500		Bracket,clock Mtg ,rh		Appelez-nous	-
36	316009045		Knob,top Valve ,white ,(4)				$ 42.53
40	316458037		Panel,manifold ,white		Appelez-nous	-
18A	316263405		End Cap,white ,lh		Appelez-nous	-
20A	316220728		Overlay,clock ,white   (Replaces: 316220700)			Immediately	$ 39.44
23A	316263501		Bracket,clock Mtg ,lh		Appelez-nous	-
F20	5304518661		Clock/timer,electronic ,es100   (Replaces: 316455410)			Immediately	$ 148.07
F24	5304527842		Switch,rocker ,white ,oven Light   (Replaces: 316448701)			Immediately	$ 16.13
NI	316021109		Screw,hex Head Cup Pt ,8-18 X 0.375 ,black   (Replaces: 316021105)			Immediately	$ 27.50
NI	316519700		Screw,cup Pt ,8-18 X 0.375 ,chrome   (Replaces: 316021108)				$ 10.02
