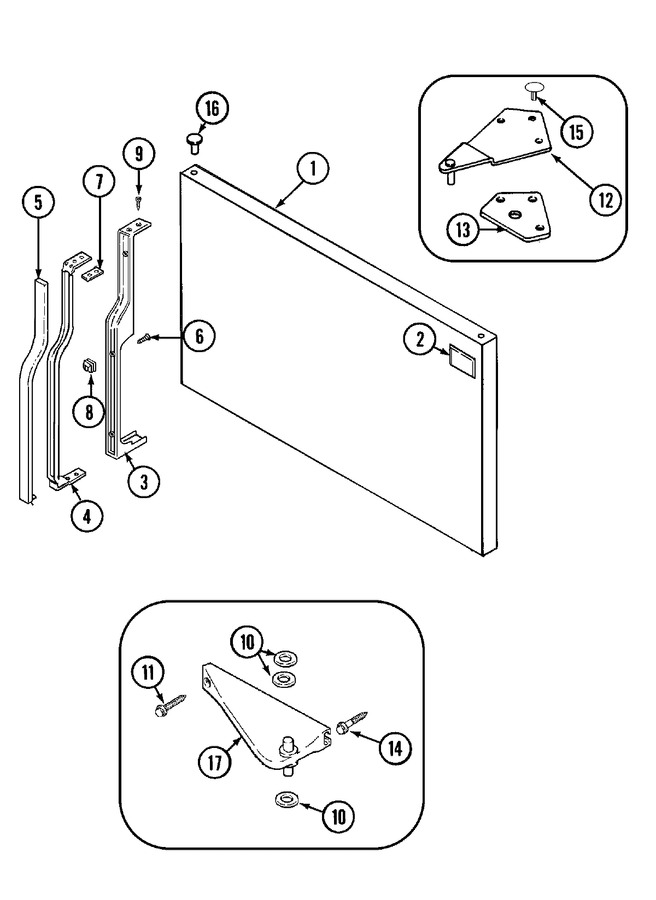

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	61002402		Panel, Frz. Door (wht)	10	Appelez-nous	-
2	66982-31		Nameplate (wht)	10	Appelez-nous	-
3	61005399		Handle, Frz. Door (wht)   (Replaces: 61002245)	10			$ 166.73
3	61001795		Plug Button (wht)	10	Appelez-nous	-
4	61002247		Frame, Handle	10	Appelez-nous	-
5	61002248		Insert, Handle (wht)	10	Appelez-nous	-
6	415033-1		Screw	10	Appelez-nous	-
7	67934-1		Shim, Handle	10	Appelez-nous	-
8	69743-1		Grommet	10	Appelez-nous	-
9	61002924		Screw	10	Appelez-nous	-
10	WP61002231		Washer, Hinge   (Replaces: 61002231)	10			$ 10.92
11	3400112		Screw   (Replaces: 61003128)	10			$ 62.96
12	61004896		Hinge, Upper	10			$ 36.71
12	WP3-24838-048		Screw   (Replaces: 61004763)	10			$ 7.00
13	61001922		Shim, Upper Hinge	10			$ 0.71
14	61002025		Screw	10	Appelez-nous	-
15	61001923		Plug Button, Hinge (wht)	10	Appelez-nous	-
16	61001908		Plug Button, Hinge Cup (wht)	10	Appelez-nous	-
17	61001920		Hinge, Center (wht)	10			$ 32.71
