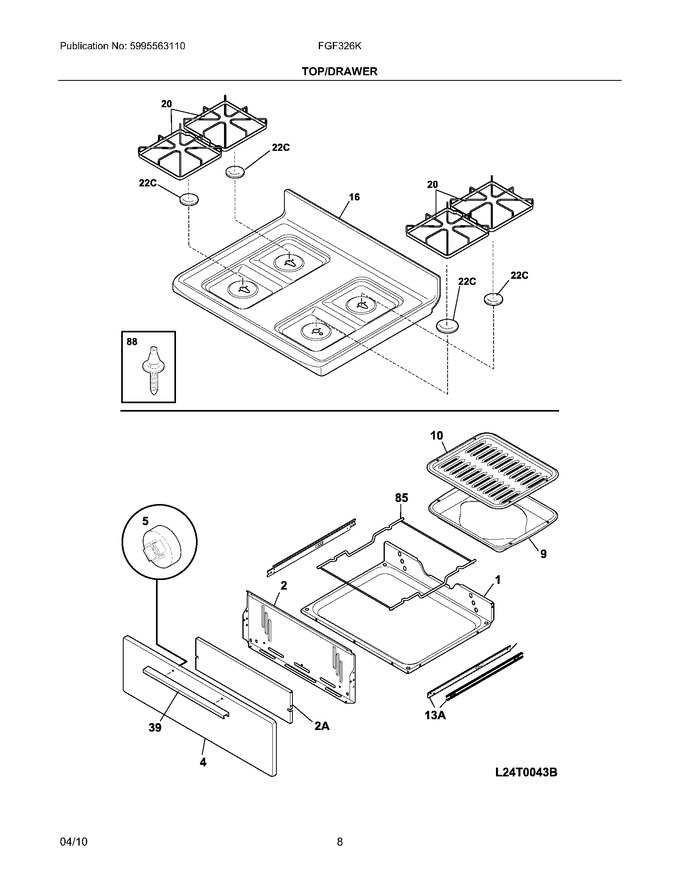

SELECT A DIAGRAM

01 - Cover


03 - Backguard


05 - Burner


07 - Body


09 - Top/drawer


11 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316110201		Carriage,low Broil				$ 232.57
2	316236401		Liner,low Broil				$ 119.96
4	316231212		Panel,drawer ,black		Appelez-nous	-
5	316129100		Fastener,push-in Nut ,nylon ,spacer		Appelez-nous	-
9	316081902		Pan,broiler ,slate Blue				$ 83.42
10	316082002		Insert,broiler Pan ,slate Blue				$ 81.14
16	316202367		Main Top,black		Appelez-nous	-
39	316019512		Handle,drawer ,black		Appelez-nous	-
85	316115600		Rack-low Broil				$ 105.47
88	316099500		Pin,guide ,(2)				$ 6.53
13A	316534200		Glide-low Broil, Inner				$ 42.75
22C	316261800		Cap,9.5k Burner ,black ,(3)		Appelez-nous	-
2A	316541500		Shield,broiler				$ 61.37
F20	316463200		Grate,gloss Black ,(4)				$ 129.00
