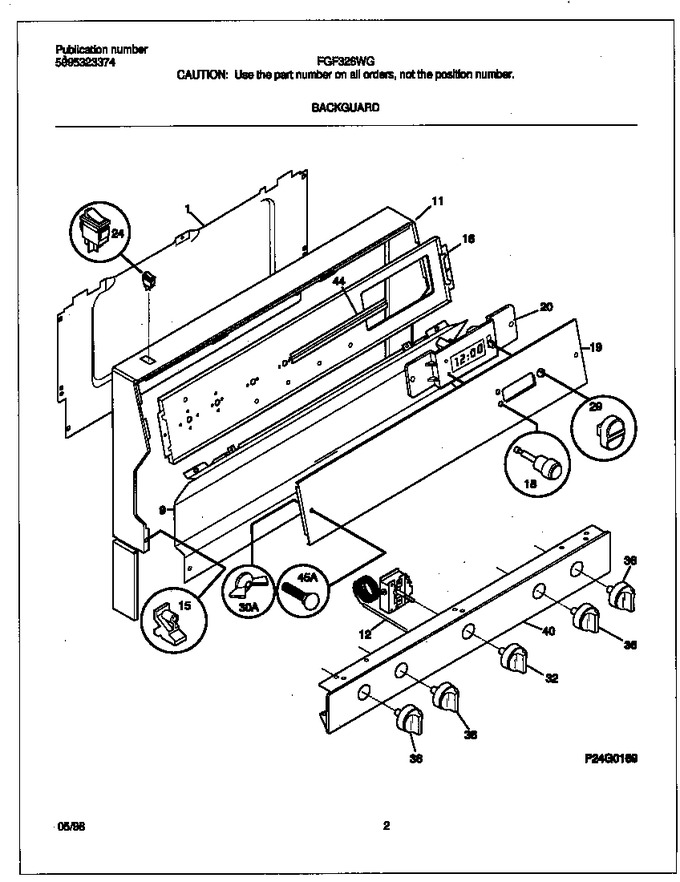

SELECT A DIAGRAM

01 - Cover


02 - Backguard


03 - Burner


04 - Body


05 - Top/drawer


06 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3131123		Shield-backguard,rear Wall		Appelez-nous	-
9	316043611		Trim-splasher, White		Appelez-nous	-
11	316083716		Trim-wrapper,white		Appelez-nous	-
12	316032411		Thermostat   (Replaces: 316032404)			Immediately	$ 165.14
15	5303131237		Support-backguard,(2)		Appelez-nous	-
16	316042601		Plate,instrument Mtg		Appelez-nous	-
18	316017303		Button-clock,white , Clock Set				$ 53.76
19	316034131		Panel-control,white		Appelez-nous	-
20	316113200		Clock-timer		Appelez-nous	-
24	5304527842		Switch-rocker, Oven Light, White   (Replaces: 316005607)			Immediately	$ 16.13
24	5304527842		Switch-rocker, Oven Light ,white   (Replaces: 316118101)			Immediately	$ 16.13
29	316028402		Button-selector, Clock/timer, White				$ 48.72
30	316064300		Nut,nylon		Appelez-nous	-
32	316102303		Knob-thermostat,black				$ 61.43
36	316009036		Knob-top Valve, (4)		Appelez-nous	-
40	316062354		Panel-manifold		Appelez-nous	-
44	3131468		Bracket, Backguard		Appelez-nous	-
45	316056903		Bolt-fastener,nylon ,white		Appelez-nous	-
*69681	316519700		Screw, Cup Pt, 8-18 X 3/8, Hinge   (Replaces: 316021108)				$ 10.02
*69682	316021109		Screw-8-18x1/2 Tr Sqd Black   (Replaces: 316021110)			Immediately	$ 27.50
*69684	316112500		Template, Anti-tip Bracket				$ 3.55

    View Diagram in Separate Window       Print Part List
