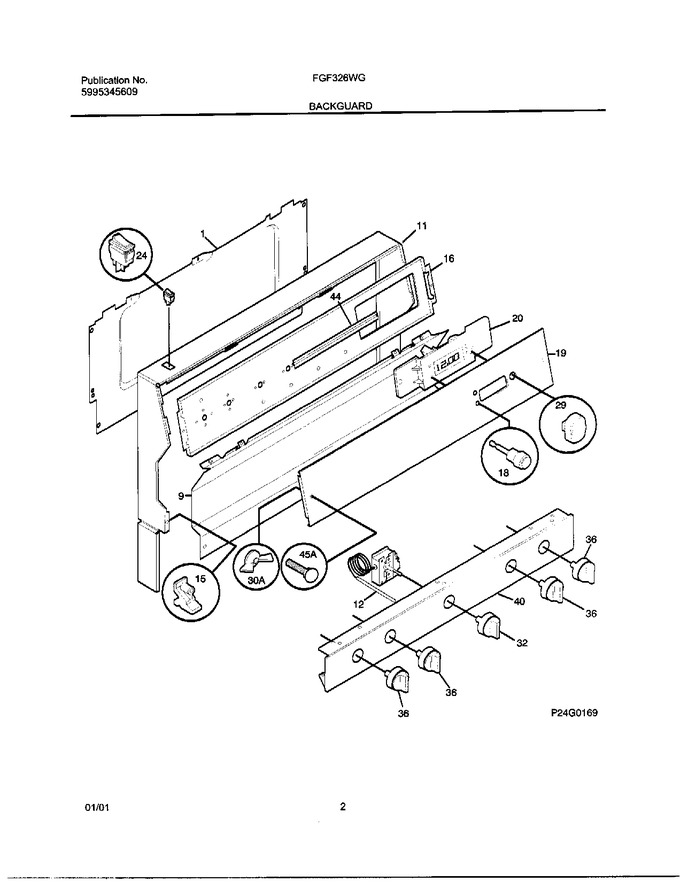

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3131123		Shield-backguard,rear Wall		Appelez-nous	-
9	316133508		Trim-splasher,almond		Appelez-nous	-
9	316133507		Trim-splasher,white ,lower		Appelez-nous	-
11	316083717		Trim-wrapper, Almond		Appelez-nous	-
11	316083716		Trim-wrapper,white		Appelez-nous	-
15	5303131237		Support-backguard,(2)		Appelez-nous	-
16	316042601		Plate,instrument Mtg		Appelez-nous	-
18	316017303		Button-clock,white , Clock Set				$ 53.76
18	316017304		Button-clock,clock Set ,almond ,(2)		Appelez-nous	-
19	316034133		Panel-control,metal ,almond ,19		Appelez-nous	-
19	316034131		Panel-control,white		Appelez-nous	-
29	316028402		Button-selector, Clock/timer, White				$ 48.72
29	316028403		Button-selector, Clock/timer, Almond				$ 38.01
32	316102303		Knob-thermostat,black				$ 61.43
32	316102315		Knob-thermostat,white		Appelez-nous	-
36	316009036		Knob-top Valve, (4)		Appelez-nous	-
36	316102319		Knob-top Valve,almond ,36 ,(4)		Appelez-nous	-
40	316086837		Panel-manifold, Almond		Appelez-nous	-
40	316062354		Panel-manifold		Appelez-nous	-
44	3131468		Bracket, Backguard		Appelez-nous	-
20#	316113200		Clock-timer		Appelez-nous	-
24#	5304527842		Switch-oven Light,rocker ,white   (Replaces: 316118101)			Immediately	$ 16.13
24#	316118102		Switch-oven Light,rocker ,almond		Appelez-nous	-
30A	316064300		Nut,nylon		Appelez-nous	-
45A	316056903		Bolt-fastener,nylon ,white		Appelez-nous	-
45A	316056904		Bolt,fastener ,nylon ,almond ,(2)		Appelez-nous	-
F12	316032411		Thermostat   (Replaces: 316032404)			Immediately	$ 165.14
NI	316021109		Screw,8-18 X 0.500 ,black   (Replaces: 316021110)			Immediately	$ 27.50
NI	316519700		Screw,cup Pt ,8-18 X 0.375 ,chrome ,hinge,ind Light,manifold Panel   (Replaces: 316021108)				$ 10.02
