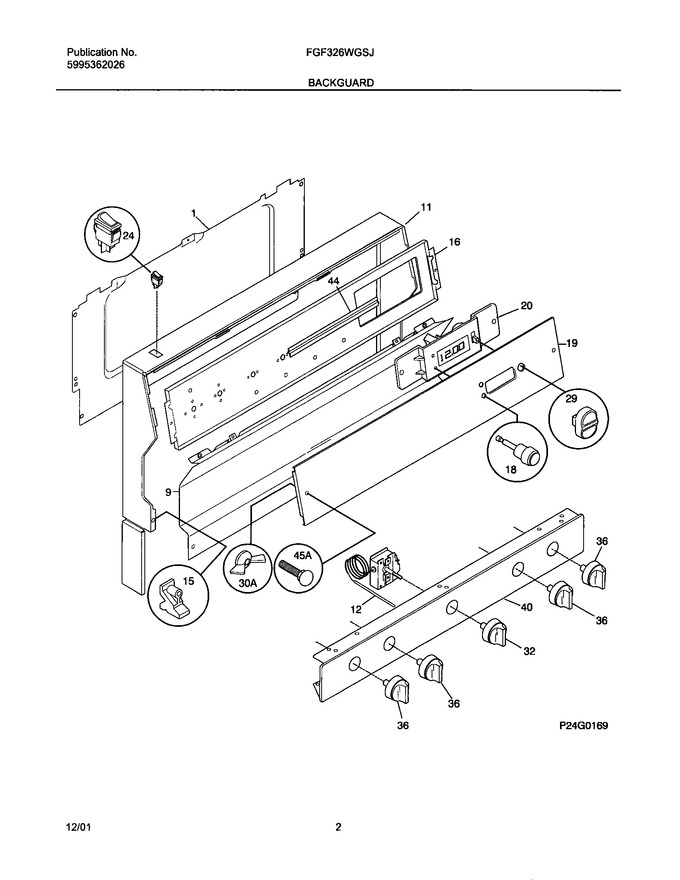

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5303289640		Shield-backguard,rear Wall				$ 144.64
9	316133507		Trim-splasher,white ,lower		Appelez-nous	-
11	316083716		Trim-wrapper,white		Appelez-nous	-
15	5303131237		Support-backguard,(2)		Appelez-nous	-
16	316042602		Plate, Instrument Mtg		Appelez-nous	-
18	316017303		Button,clock Set ,white				$ 53.76
19	316034131		Panel-control,white		Appelez-nous	-
29	316028402		Button,clock Selector ,white				$ 48.72
32	316102303		Knob,thermostat ,white				$ 61.43
36	316009036		Knob,top Valve ,white ,(4)		Appelez-nous	-
40	316062354		Panel,manifold ,white		Appelez-nous	-
44	3131468		Bracket, Backguard		Appelez-nous	-
30A	316064300		Nut,nylon		Appelez-nous	-
45A	316056903		Bolt,fastener ,nylon ,white ,(2)		Appelez-nous	-
F12	316032411		Thermostat   (Replaces: 316032404)			Immediately	$ 165.14
F20	316113200		Clock-timer		Appelez-nous	-
F24	5304527842		Switch,oven Light ,white ,rocker   (Replaces: 316118101)			Immediately	$ 16.13
NI	316021109		Screw,8-18 X 0.5 ,black   (Replaces: 316021110)			Immediately	$ 27.50
NI	316021109		Screw,hex Head Cup Pt ,8-18 X 0.375 ,black   (Replaces: 316021105)			Immediately	$ 27.50
NI	316519700		Screw,cup Pt ,8-18 X 0.375 ,chrome   (Replaces: 316021108)				$ 10.02
