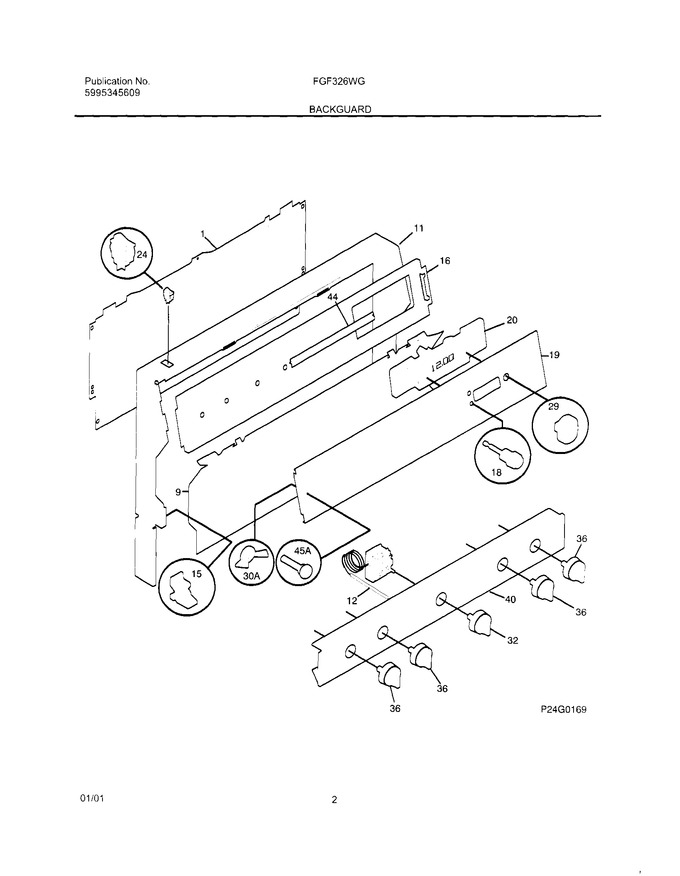

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3131123		Shield-backguard,rear Wall		Appelez-nous	-
9	316133508		Trim-splasher,almond		Appelez-nous	-
11	316083717		Trim-wrapper, Almond		Appelez-nous	-
12	316032411		Thermostat   (Replaces: 316032404)			Immediately	$ 165.14
15	5303131237		Support-backguard,(2)		Appelez-nous	-
16	316042601		Plate,instrument Mtg		Appelez-nous	-
18	316017304		Button-clock,clock Set ,almond ,(2)		Appelez-nous	-
19	316034133		Panel-control,metal ,almond ,19		Appelez-nous	-
20	316113200		Clock-timer		Appelez-nous	-
24	316118102		Switch-oven Light,rocker ,almond		Appelez-nous	-
29	316028403		Button-selector, Clock/timer, Almond				$ 38.01
30	316064300		Nut,nylon		Appelez-nous	-
32	316102315		Knob-thermostat,white		Appelez-nous	-
36	316102319		Knob-top Valve,almond ,36 ,(4)		Appelez-nous	-
40	316086837		Panel-manifold, Almond		Appelez-nous	-
44	3131468		Bracket, Backguard		Appelez-nous	-
45	316056904		Bolt,fastener ,nylon ,almond ,(2)		Appelez-nous	-
NI	316021109		Screw,8-18 X 0.500 ,black   (Replaces: 316021110)			Immediately	$ 27.50
NI	316519700		Screw,cup Pt ,8-18 X 0.375 ,chrome ,hinge,ind Light,manifold Panel   (Replaces: 316021108)				$ 10.02

    View Diagram in Separate Window       Print Part List
