Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 61001943 Tunnel, Air 10 Appelez-nous -
2 61002106 Cover, Evaporator 10 Appelez-nous -
2 WP489474 Screw   (Replaces: 61002429) 10 In-Stock Immediately $ 7.17

2 61001952 Plug Button, Evap. Cover 10 Appelez-nous -
3 61001967 Seal, Foam (ctr.) 10 Appelez-nous -
3 61004560 Seal, Evaporator Cover 10 Appelez-nous -
4 61004830 Tray, Drip 10 Appelez-nous -
4 61004832 Barrier, Foil 10 Appelez-nous -
5 61001935 Blade, Evaporator Fan 10 Appelez-nous -
6 61001930 Bracket, Evaporator Fan 10 Appelez-nous -
6 WP489399 Screw   (Replaces: 61005240) 10 Special Order $ 6.26

7 61005339 Motor, Evaporator Fan 13 Special Order $ 149.98

7 61005935 Motor, Evaporator Fan (w/lead) 12 Special Order $ 158.43

7 61005935 Motor, Evaporator Fan (w/lead) 16 Special Order $ 158.43

7 61005339 Motor, Evaporator Fan 10 Special Order $ 149.98

8 61004834 Clip, Defrost Heater 10 Appelez-nous -
9 WP61001946 Heater, Defrost   (Replaces: 61001946) 10 Special Order $ 137.52

10 61002141 Shelf, Freezer 10 Appelez-nous -
11 61004835 Support, Evaporator (lt) 10 Appelez-nous -
11 61004836 Support, Evaporator (rt) 10 Appelez-nous -
12 WP61005254 Thermostat, Defrost   (Replaces: 61005254) 10 In-Stock Immediately $ 103.09

13 61002142 Support, Frz. Shelf (frt) 10 Appelez-nous -
13 61002143 Support, Frz. Shelf (rear) 10 Appelez-nous -
14 12001396 Evap/heat Exch. Assy. 15 & 17` 10 Special Order $ 233.00

15 WP841180A Tray, Ice   (Replaces: 59281-2) 10 In-Stock Immediately $ 41.00

16 61005341 Bushing, Evaporator Fan 10 Special Order $ 18.17

17 61005015 Plug Button, Ice Maker 10 Appelez-nous -
18 61002109 Cap, Fill Tube 10 Appelez-nous -
19 WP489399 Screw   (Replaces: 61005240) 10 Special Order $ 6.26

19 61005340 Retainer, Evaporator Fan 10 Appelez-nous -
NI 61005521 Wire Harness, Frz. 13 Appelez-nous -
NI 61006025 Wire Harness, Frz. 16 Appelez-nous -
NI 61006025 Wire Harness, Frz. 12 Appelez-nous -
NI 61005521 Wire Harness, Frz. 10 Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

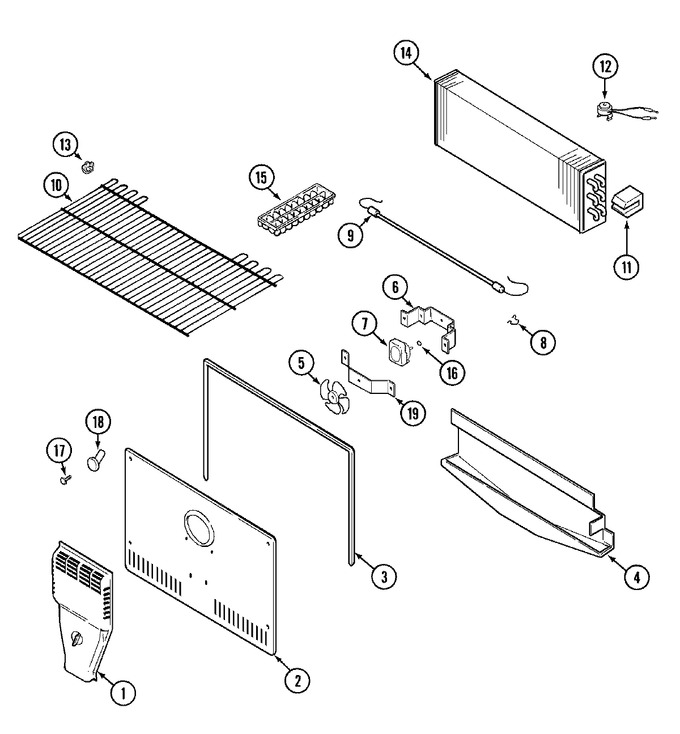

Diagram for CTL1511GEW
