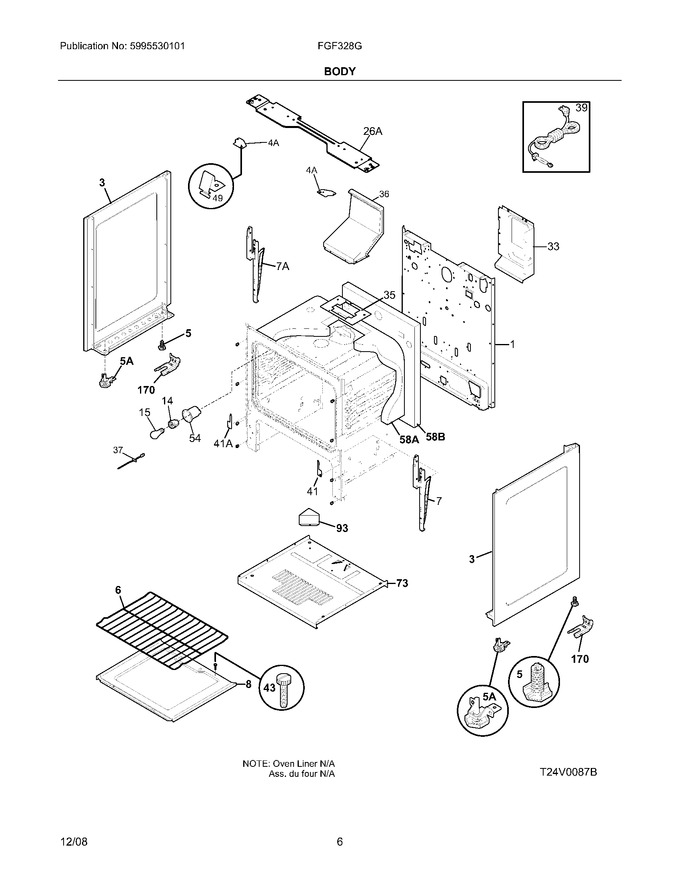

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316029415		Panel,main Back		Appelez-nous	-
3	316400144		Panel,bodyside ,black ,rh   (Replaces: 316400118)			Immediately	$ 134.69
3	316400145		Panel,bodyside ,black ,lh   (Replaces: 316400119)			Immediately	$ 133.93
5	316272900		Screw,leveling ,plastic ,rear ,(2)			Immediately	$ 27.50
6	316067902		Rack,oven ,(2)			Immediately	$ 103.10
7	316566202		Hinge,oven Door ,rh   (Replaces: 316216502)				$ 73.96
8	316495901		Panel,,oven Bottom				$ 134.40
14	316116400		Receptacle,oven Light			Immediately	$ 56.10
15	316538904		Lamp,oven Light   (Replaces: 316538901)			Immediately	$ 20.48
33	316055600		Shield-spark Module,galv Steel		Appelez-nous	-
35	316542102		Gasket-flue   (Replaces: 316542100)				$ 12.13
36	316208902		Flue,black		Appelez-nous	-
39	5304534377		Cord-electric Power   (Replaces: 3202006)				$ 26.85
41	316233400		Cover,hinge Cutout ,rh				$ 67.99
43	316282700		Screw,8-18 X 1.438 ,oven Bottom   (Replaces: 3131732)				$ 9.93
49	316234200		Clip,maintop Mtg ,(2)				$ 46.78
54	5303271606		Housing,oven Light		Appelez-nous	-
73	316109902		Base,low Broil				$ 131.25
93	316110000		Shield,ignitor ,metal		Appelez-nous	-
170	316112005		Anti Tip Kit,assembly   (Replaces: 316112004)			Immediately	$ 18.91
26A	316498200		Bracket-support,chassis ,aluminum				$ 52.33
41A	316233500		Cover-hinge,cutout ,lh				$ 16.96
4A	316446900		Bracket,chassis ,front ,(2)				$ 8.51
58A	3017142		Insulation, Oven Wrapper				$ 193.50
58B	316054202		Insulation, 1`` ,oven Back				$ 76.59
5A	5304509869		Leveling Leg Assy,metal ,front ,(2) ,bracket & Leg   (Replaces: 316407201)			Immediately	$ 15.08
7A	316216503		Hinge,oven Door ,lh		Appelez-nous	-
F170	316541700		Template,anti-tip		Appelez-nous	-
F170	316112005		Bracket,anti-tip   (Replaces: 316107200)			Immediately	$ 18.91
F170	316116000		Screw,concrete ,1.75`` ,anti-tip Brkt				$ 12.89
F37	316233903		Probe-oven Temp   (Replaces: 316233900)			Immediately	$ 57.29
NI	5303285179		Screw,wafer Head `8-32t X 0.500 ,black				$ 13.46
NI	316528101		Harness,wiring ,main		Appelez-nous	-
NI	316435800		Plate,weight ,(3)		Appelez-nous	-
NI	316539800		Retainer,wire				$ 14.41
NI	316064600		Support,oven Bottom				$ 18.95
NI	316021109		Screw,8-18 X 0.5 ,black   (Replaces: 316021110)			Immediately	$ 27.50
NI	316089500		Screw, 10-16 X .486				$ 13.46
NI	5303271648		Screw,wafer Hd Sq Dr ,8-18ab X 0.5			Immediately	$ 13.46
NI	316021109		Screw,hex Head Cup Pt ,8-18 X 0.375 ,black   (Replaces: 316021105)			Immediately	$ 27.50
