Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 61002035 Tunnel, Air 11 Appelez-nous -
2 WP489474 Screw   (Replaces: 61002429) 11 In-Stock Immediately $ 7.17

2 61002106 Cover, Evaporator 11 Appelez-nous -
3 61001968 Seal, Evaporator Cover 11 Appelez-nous -
3 61001967 Seal, Foam (ctr.) 11 Appelez-nous -
3 61002517 Seal, Foam (sound Dampening) 11 Appelez-nous -
4 61002015 Tray, Drip 11 Appelez-nous -
5 61001935 Blade, Evaporator Fan 11 Appelez-nous -
6 61001930 Bracket, Evaporator Fan 11 Appelez-nous -
6 WP489399 Screw   (Replaces: 61001885) 11 Special Order $ 6.26

7 61002107 Motor, Evaporator Fan 11 Appelez-nous -
8 WP61003071 Clip, Defrost Heater   (Replaces: 61002206) 11 Special Order $ 9.72

9 61002108 Heater, Defrost 11 Appelez-nous -
10 61001956 Shield, Defrost Heater 11 Appelez-nous -
11 61001954 Support, Evaporator (rt) 11 Appelez-nous -
11 61001953 Support, Evaporator (lt) 11 Appelez-nous -
12 WP61002992 Thermostat, Defrost   (Replaces: 61002992) 11 In-Stock Immediately $ 105.10

12 WP4387503 Thermostat, Defrost(alternate)   (Replaces: 61002113) 11 In-Stock Immediately $ 43.10

13 67006425 Screw   (Replaces: 400017-35) 11 In-Stock Immediately $ 6.26

13 61001951 Bracket, Evaporator 11 Appelez-nous -
14 12001396 Evap/heat Exch. Assy. 15 & 17` 11 Special Order $ 233.00

15 WP61002140 Tray, Ice   (Replaces: 61002140) 11 Special Order $ 18.23

16 61002141 Shelf, Freezer 11 Appelez-nous -
17 67557-2 Plug Button, Air Duct & I/m 11 Appelez-nous -
18 61002109 Cap, Fill Tube 11 Appelez-nous -
19 61002235 Bushing, Evaporator Fan 11 Appelez-nous -
20 61002028 Cap, Water Entry 11 Appelez-nous -
21 61002177 Pan, Ice 11 Appelez-nous -
22 61002142 Support, Frz. Shelf (frt) 11 Appelez-nous -
22 61002143 Support, Frz. Shelf (rear) 11 Appelez-nous -
23 61002234 Retainer, Evaporator Fan 11 Appelez-nous -
NI 61002914 Wire Harness, Frz. 11 Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

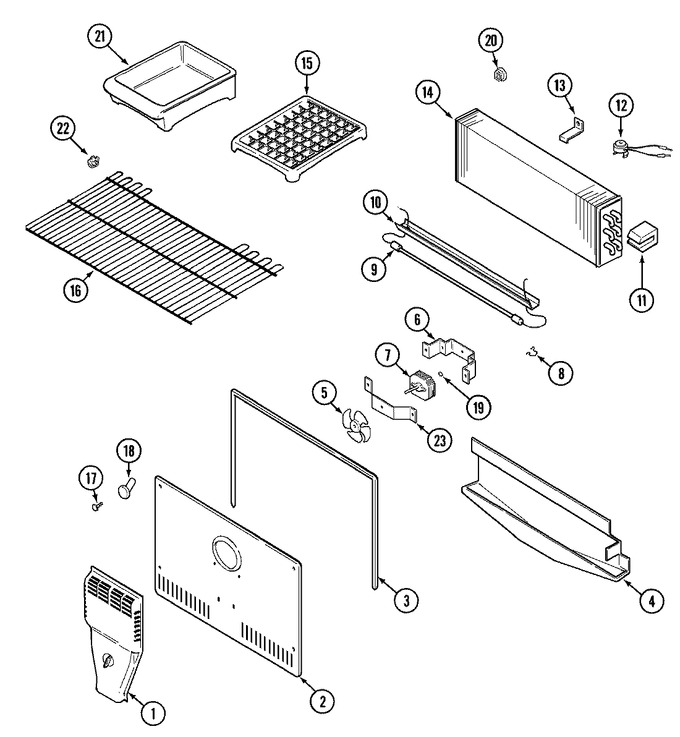

Diagram for CTM430
