SELECT A DIAGRAM

01 - Compressor


02 - Controls


03 - Freezer Compartment


04 - Freezer Inner Door


05 - Freezer Outer Door


06 - Fresh Food Inner Door


07 - Fresh Food Outer Door


08 - Shelves & Accessories


09 - Wiring Information

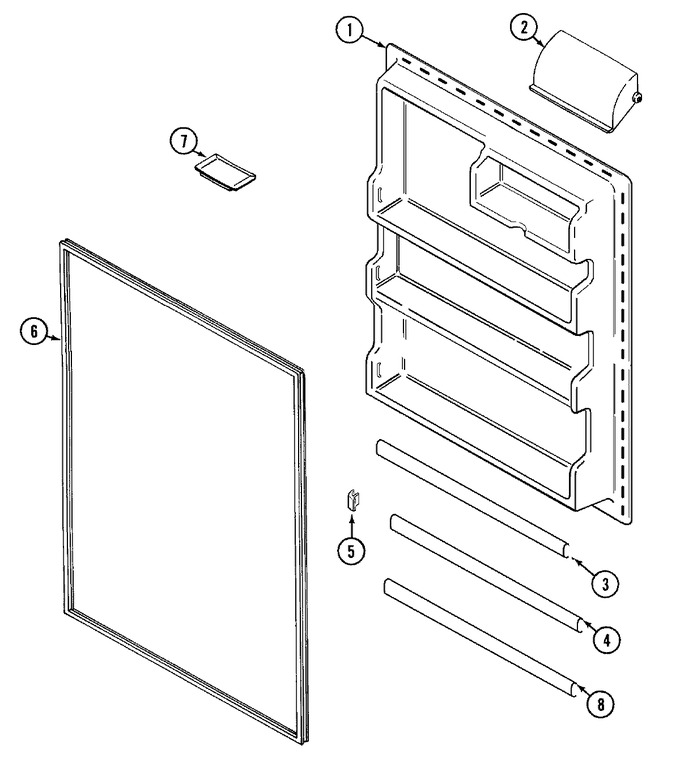

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	65275-5		Screw	10	Appelez-nous	-
1	61002548		Liner, F.f. Door	10	Appelez-nous	-
2	61003007		Door, Dairy	10	Appelez-nous	-
3	W11045462		Trim, Door (25.5)   (Replaces: 61002608)	10			$ 69.47
4	W11045462		Trim, Door Lwr   (Replaces: 61002609)	10			$ 69.47
5	WP61002112		End Cap, Shelf Trim   (Replaces: 61002112)	10		Immediately	$ 14.71
6	WP61004010		Seal, F.f. Door (wht)   (Replaces: 61002056)	10			$ 296.04
7	29936-2		Tray, Butter	10	Appelez-nous	-

    View Diagram in Separate Window       Print Part List
