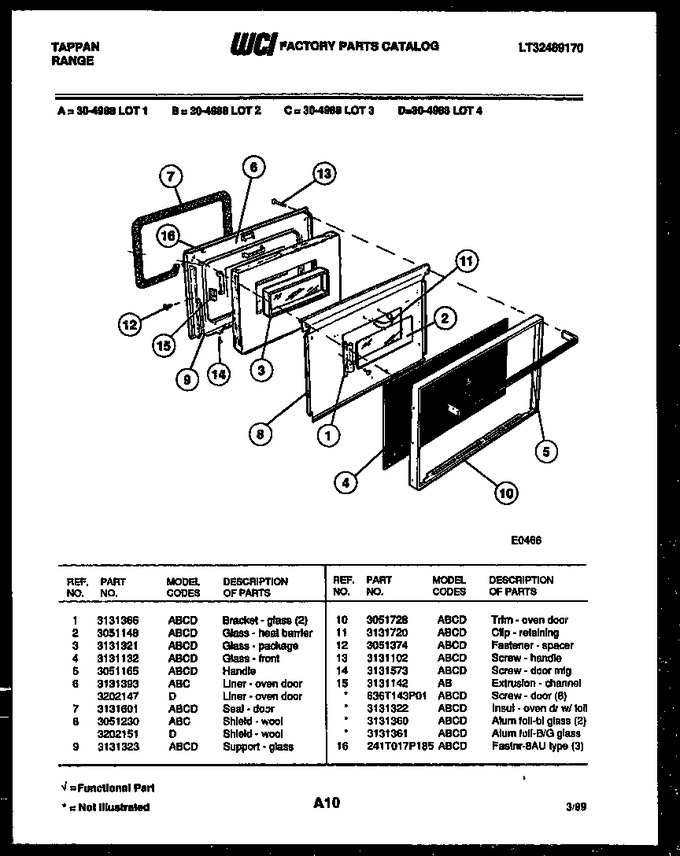

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3131366 | Bracket, Glass (2) |
|
- | |||||
| 2 | 3051148 | Glass, Heat Barrier |
|
- | |||||
| 3 | 3131321 | Glass, Package |
|
- | |||||
| 4 | 3131132 | Glass, Front |
|
- | |||||
| 5 | 3051165 | Handle |
|
- | |||||
| 6 | 3202147 | Liner-oven Door |
|
- | |||||
| 7 | 3131601 | Seal, Door |
|
- | |||||
| 8 | 3202151 | Shield, Wool |
|
- | |||||
| 9 | 3131323 | Support, Glass |
|
- | |||||
| 10 | 3051728 | Trim, Oven Door |
|
- | |||||
| 11 | 3131720 | Clip-retaining |
|
- | |||||
| 12 | 3051374 | Fastener-spacer |
|
- | |||||
| 13 | 3131102 | Screw-handle |
|
- | |||||
| 14 | 3131573 | Screw Door Mtg |
|
- | |||||
| 16 | 241T017P185 | Fastnr-8au Type (3) |
|
- | |||||
| 15A | 636T143P01 | Screw |
|
- | |||||
| 15B | 3131322 | Insul - Oven Dr W/ Foil (non-illustrated) |
|
- | |||||
| 15C | 3131360 | Alum Foil-bl Glass (2) (non-illustrated) |
|
- | |||||
| 15D | 3131361 | Alum Foil-b/g Glass (non-illustrated) |
|
- |
