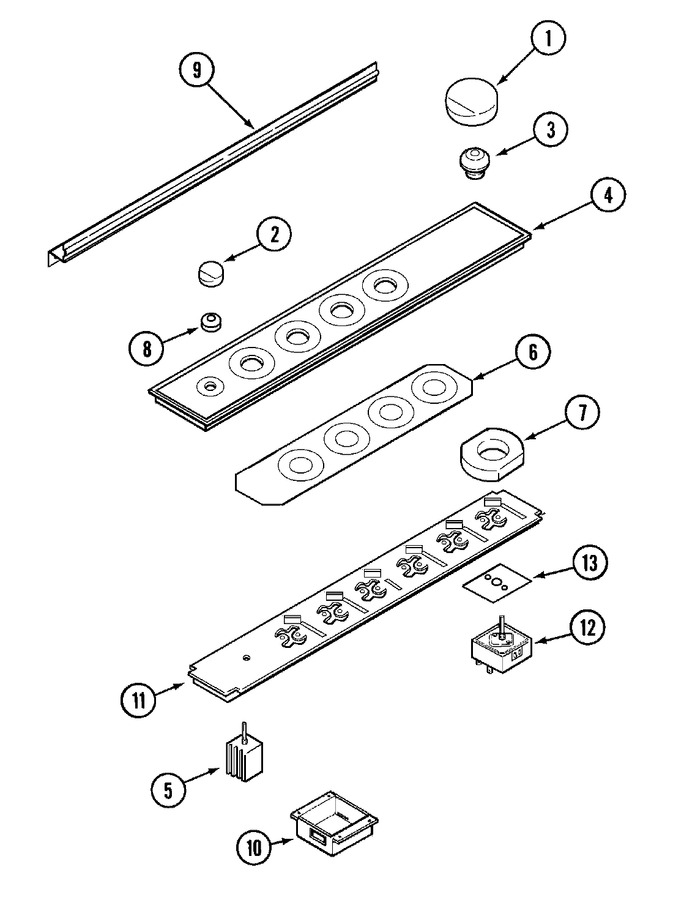

01 - Blower Plenum
02 - Body
03 - Control Panel
04 - Top Assembly
05 - Wiring Information
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | Y706096 | Knob, Infinite Switch (gray) | 10 |
|
$ 28.06 | ||||
| 1 | 71002373 | Knob, Burner (wht) | 10 |
|
$ 16.56 | ||||
| 2 | Y706097 | Knob, Fan Switch (gry) | 10 |
|
$ 14.56 | ||||
| 3 | 71002371 | Grommet, Spill (gry) | 10 |
|
- | ||||
| 4 | 71003208 | Panel, Control (wht) | 10 |
|
- | ||||
| 5 | WP74009254 | Switch, Fan Control (Replaces: 71001303) | 10 |
|
Immediately | $ 192.13 | |||
| 6 | 71002580 | Lens, Light | 10 |
|
- | ||||
| 7 | Y706061 | Box, Light | 10 |
|
$ 51.50 | ||||
| 7 | 71003219 | Fastener, Push-in | 10 |
|
- | ||||
| 8 | Y706103 | Grommet, Fan Switch | 10 |
|
$ 5.49 | ||||
| 9 | 71002566 | Bracket, Control Panel | 10 |
|
- | ||||
| 9 | WPY706189 | Screw (Replaces: Y706189) | 10 |
|
Immediately | $ 6.47 | |||
| 10 | Y706173 | Box, Junction | 10 |
|
- | ||||
| 11 | WP7101P309-60 | Screw (Replaces: Y04100501) | 10 |
|
Immediately | $ 6.26 | |||
| 11 | 71003226 | Plate, Switch | 10 |
|
- | ||||
| 12 | 71003217 | Switch, Infinite | 10 |
|
- | ||||
| 13 | WP71002569 | Gasket, Infinite Switch (Replaces: 71002569) | 10 |
|
Immediately | $ 9.06 | |||
| NI | 71003224 | Kit, Lp Orifice | 10 |
|
- | ||||
| NI | Y04100535 | Wire, White (18``) | 10 |
|
- | ||||
| NI | Y04100536 | Wire, White (30``) | 10 |
|
- | ||||
| NI | Y04100378 | Wire, Orange (18``) | 10 |
|
- | ||||
| NI | 71003214 | Harness, Control/module | 10 |
|
- | ||||
| NI | 71003213 | Harness, Control/recept | 10 |
|
- | ||||
| NI | 71003212 | Harness, Ind Light | 10 |
|
- | ||||
| NI | 71003211 | Harness, Supply | 10 |
|
- | ||||
| NI | 71003218 | Manual, Use & Care | 10 |
|
- | ||||
| NI | 71003222 | Manual, Use & Care (fch) | 10 |
|
- | ||||
| NI | 16000326 | Guide, Quick Ref - Jenn-air | 10 |
|
- |
