01 - Blower Assembly-plenum
02 - Burner Box Assy.
03 - Control Assembly
04 - Top Assembly
05 - Wiring Information
SELECT A DIAGRAM
New Model Search:

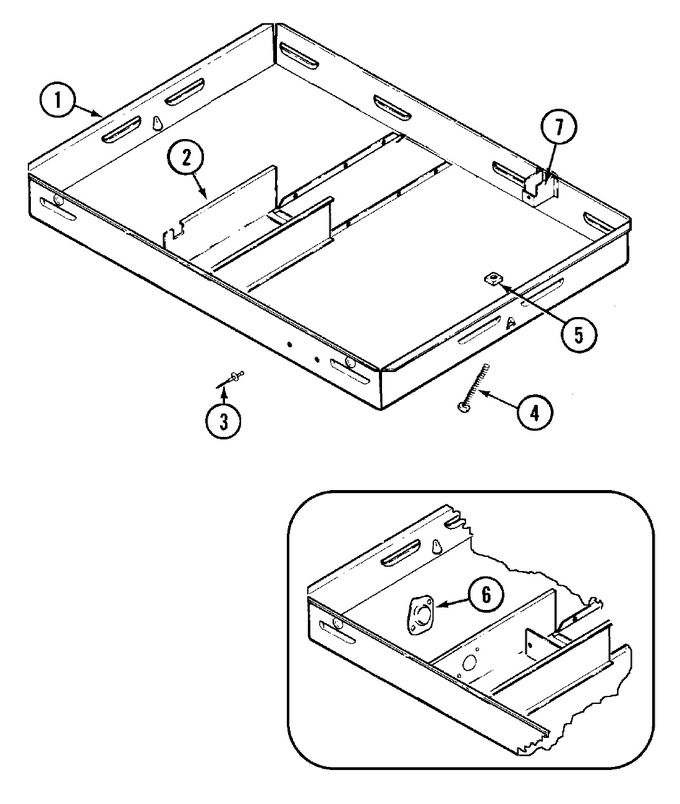

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 04100395 | Box, Burner | 11 |
|
- | ||||
| 2 | 04100396 | Baffle, Burner Box | 11 |
|
- | ||||
| 3 | WP210720 | Rivet (Replaces: 701662) | 11 |
|
$ 12.14 | ||||
| 4 | Y707121 | Screw | 11 |
|
- | ||||
| 5 | M0282009 | Nut,square (Replaces: Y707124) | 11 |
|
$ 12.06 | ||||
| 5 | WP90767 | Screw (Replaces: Y700502) | 11 |
|
Immediately | $ 7.04 | |||
| 6 | 04100398 | Limit Shield | 11 |
|
- | ||||
| 6 | Y04100397 | Limiter, Thermal | 11 |
|
- | ||||
| 7 | Y708910 | Clip | 11 |
|
- | ||||
| 7 | 04100399 | Top Support Bracket | 11 |
|
- | ||||
| 7 | 04100400 | Drain Cover | 11 |
|
- |
