01 - Blower Assembly-plenum
02 - Body
03 - Top Assembly
04 - Wiring Information
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|

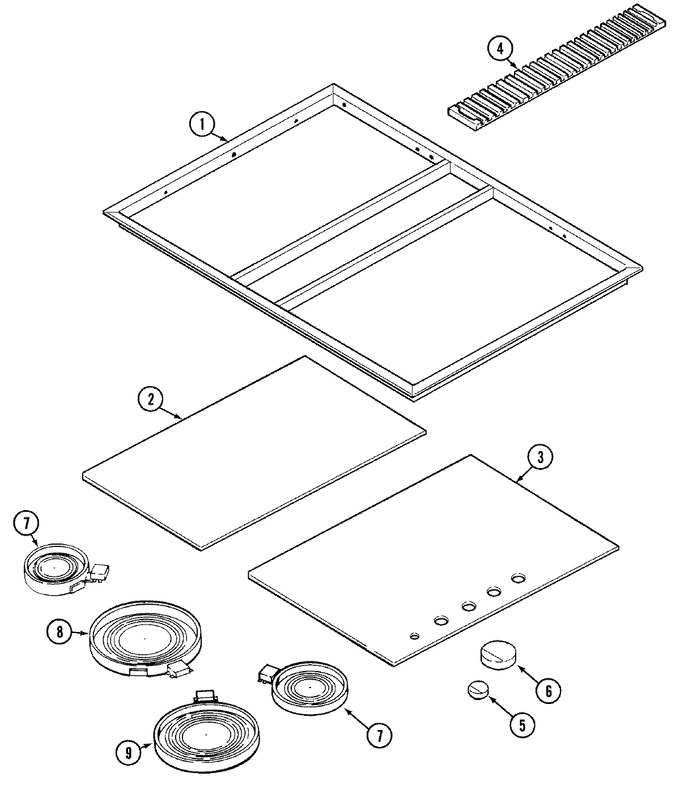

| 1 | 71002212 | Frame, Top (blk) | 11 |
|
- | ||||
| 2 | 71002219 | Glass, Main Top (lt-blk) | 11 |
|
- | ||||
| 3 | 71002220 | Glass, Main Top (rt-blk) | 11 |
|
- | ||||
| 4 | Y706005 | Grill, Air (blk) | 11 |
|
$ 92.64 | ||||
| 5 | W11715914 | Knob, Fan Switch (blk) (Replaces: Y706036) | 11 |
|
Immediately | $ 36.14 | |||
| 6 | Y706037 | Knob, Infinite Switch (blk) | 11 |
|
- | ||||
| 7 | W10823704 | Element, Radiant (1200w) (Replaces: 71001423) | 11 |
|
Immediately | $ 309.01 | |||
| 8 | W10823709 | Element, Dual Rad.(2200/700w) (Replaces: 71002253) | 11 |
|
Immediately | $ 172.88 | |||
| 9 | W10823707 | Element, Radiant (2200w) (Replaces: 71001424) | 11 |
|
Immediately | $ 316.13 | |||
| NI | 71002254 | Harness, Control | 11 |
|
- | ||||
| NI | 71001600 | Manual, Use & Care | 11 |
|
- | ||||
| NI | 16010241 | Manual, Service | 11 |
|
- |
