SELECT A DIAGRAM

01 - Blower Assembly-plenum


02 - Body


03 - Top Assembly


04 - Wiring Information

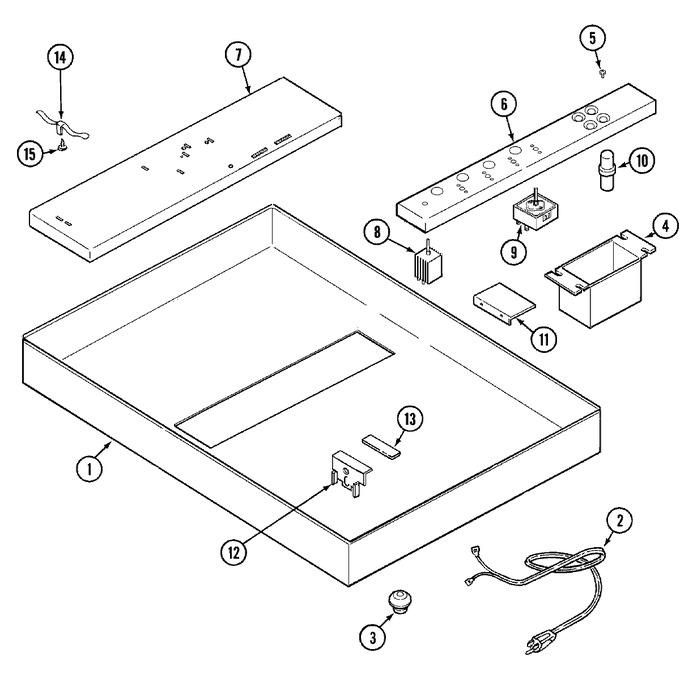

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	71002256		Box, Burner	11	Appelez-nous	-
2	71002257		Cord, Receptacle	11	Appelez-nous	-
3	Y04100503		Relief, Strain	11	Appelez-nous	-
4	Y706173		Box, Junction	11	Appelez-nous	-
4	Y706174		Cover, Junction Box	11	Appelez-nous	-
5	WP90767		Screw   (Replaces: Y700502)	11		Immediately	$ 7.04
6	71002258		Plate, Switch	11	Appelez-nous	-
7	71002259		Support, Element	11	Appelez-nous	-
8	Y706103		Grommet, Fan Switch	11			$ 5.49
8	WP74009254		Switch, Fan Control   (Replaces: 71001303)	11		Immediately	$ 192.13
8	WP74009254		Switch, Fan Control   (Replaces: 74009254)			Immediately	$ 192.13
9	12002125		Switch, Dual   (Replaces: 71001612)	11		Immediately	$ 79.23
9	12002125		Switch, Dual Element(series M)   (Replaces: 74007715)	12		Immediately	$ 79.23
9	WPY706102		Grommet, Infinite Switch   (Replaces: Y706102)	11		Immediately	$ 6.78
9	W11088181		Switch, Infinite   (Replaces: 71001166)	11		Immediately	$ 107.44
10	Y706125		Light, Indicator	11	Appelez-nous	-
11	71002260		Bracket, Filler	11	Appelez-nous	-
12	71001108		Support, Glass	11	Appelez-nous	-
13	71001239		Pad, Glass Support	11	Appelez-nous	-
14	74007134		Spring, Element Support   (Replaces: Y04100418)	11			$ 10.51
15	WP74004005		Screw   (Replaces: Y708359)	11			$ 6.95

    View Diagram in Separate Window       Print Part List
