SELECT A DIAGRAM

01 - Blower Assembly-plenum


02 - Body


03 - Top Assembly


04 - Wiring Information

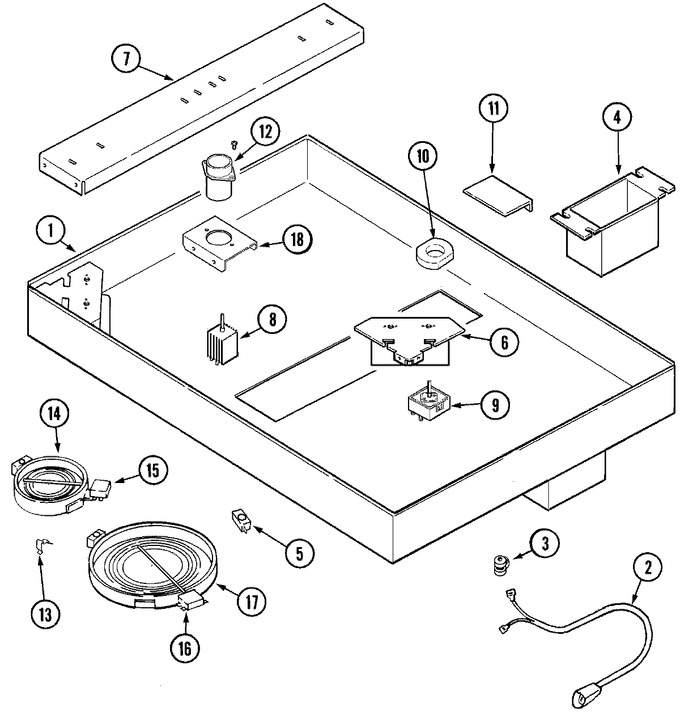

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	71003472		Bottom, Burner Box	10	Appelez-nous	-
2	71003476		Cord, Fan Receptacle	10	Appelez-nous	-
3	Y04100503		Relief, Strain	10	Appelez-nous	-
4	Y706174		Cover, Junction Box	10	Appelez-nous	-
4	Y706173		Box, Junction	10	Appelez-nous	-
5	71003486		Light, Hot	10			$ 44.79
6	71003468		Bracket, Switch Plate	10	Appelez-nous	-
7	71003467		Plate, Element Support	10	Appelez-nous	-
8	WP74009254		Switch, Fan Control   (Replaces: 74009254)			Immediately	$ 192.13
8	WP74009254		Switch, Fan Control   (Replaces: 71001303)	10		Immediately	$ 192.13
8	Y312706		Hex Nut On Switch	10	Appelez-nous	-
9	12002125		Switch, Dual   (Replaces: 71001612)	10		Immediately	$ 79.23
9	12002125		Switch, Infinite (dual)   (Replaces: 74007896)	11		Immediately	$ 79.23
9	W11088181		Switch, Infinite   (Replaces: 71001166)	10		Immediately	$ 107.44
9	WP74011242		Switch, Infinite   (Replaces: 71003489)	10		Immediately	$ 75.89
10	Y706061		Box, Light	10			$ 51.50
10	WP7101P309-60		Screw   (Replaces: Y04100501)	10		Immediately	$ 6.26
11	71003470		Bracket, Filler (rear)	10	Appelez-nous	-
12	74004810		Sleeve, Knob Alignment	10	Appelez-nous	-
13	74007134		Spring, Element Support   (Replaces: Y04100418)	10			$ 10.51
13	WP74004005		Screw   (Replaces: Y708359)	10			$ 6.95
14	W10823704		Element W/limiter (6``)   (Replaces: 74001011)	10		Immediately	$ 309.01
15	74004494		Limiter	10	Appelez-nous	-
16	74004494		Limiter	10	Appelez-nous	-
17	W10823709		Element, Dual Rad.(2200/700w)   (Replaces: 71002253)	10		Immediately	$ 172.88
17	W10823707		Element W/limiter (8``)   (Replaces: 74001012)	10		Immediately	$ 316.13
18	71003559		Bracket, Filler (front)	10	Appelez-nous	-
