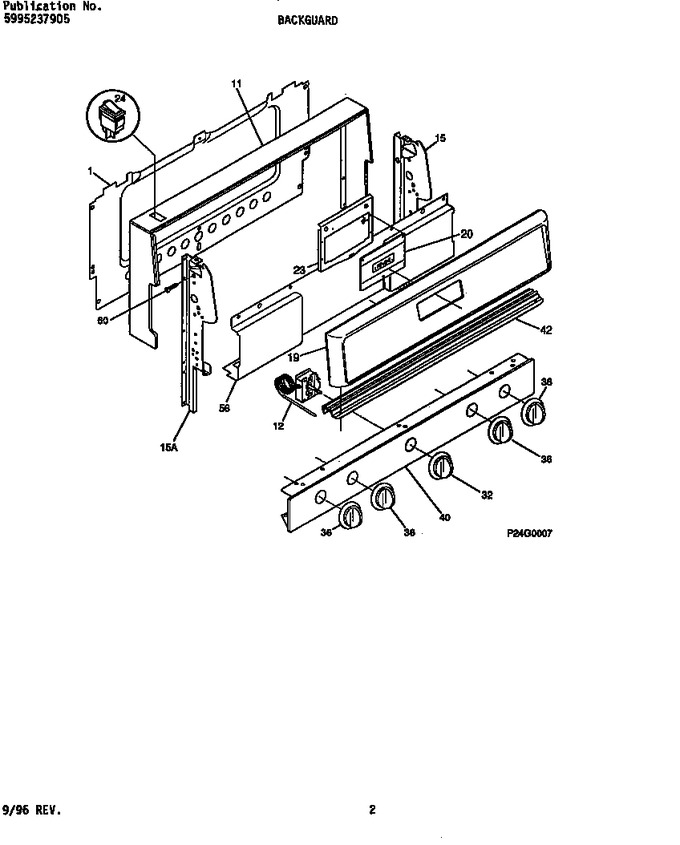

02 - Backguard
03 - Burner, Manifold And Gas Control
04 - Body Parts
05 - Cooktop And Broiler Drawer Parts
06 - Door Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 316028705 | Shield-backguard, Rear Wall |
|
- | |||||
| 11 | 316034310 | Trim-wrapper |
|
- | |||||
| 12 | 316032411 | Thermostat-oven (Replaces: 5303271464) |
|
Immediately | $ 165.14 | ||||
| 15 | 316023104 | Support-backguard, Black, Rh |
|
- | |||||
| 19 | 316024405 | Panel-control, Metal |
|
- | |||||
| 20 | 316045103 | Clock/timer, Electronic |
|
- | |||||
| 23 | 316033201 | Bracket-clock Mtg |
|
- | |||||
| 24 | 5304527841 | Switch-light/lamp, Rocker, Black (Replaces: 316005602) |
|
Immediately | $ 11.38 | ||||
| 32 | 316053600 | Knob-thermostat |
|
- | |||||
| 36 | 316049300 | Knob-top Valve, (4) |
|
- | |||||
| 40 | 316009267 | Panel-manifold |
|
- | |||||
| 42 | 316055200 | Trim-vent |
|
- | |||||
| 56 | 316014601 | Deflector-flue |
|
- | |||||
| 60 | 5303288574 | Screw, Truss Head, 8-10 X 3/8 |
|
- | |||||
| 15A | 316023105 | Support-backguard, Black, Lh |
|
- |
