01 - Blower Plenum
02 - Burner Box Assembly
03 - Control Panel
New Model Search:

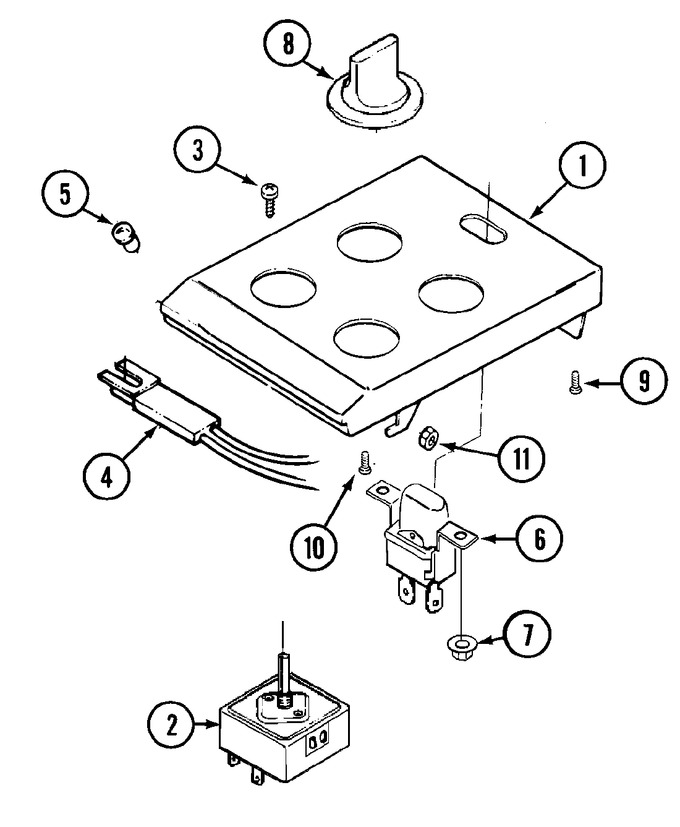

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 704210 | Escutcheon | 11 |
|
- | ||||
| 2 | W11120791 | Switch, Infinite (Replaces: 703650) | 11 |
|
Immediately | $ 98.55 | |||
| 3 | Y704864 | Screw | 11 |
|
- | ||||
| 4 | 704209 | Light, Pilot | 11 |
|
- | ||||
| 5 | 703927 | Lens | 11 |
|
- | ||||
| 6 | Y704573 | Switch, Fan (blk) | 11 |
|
- | ||||
| 7 | Y04100035 | Nut, Push | 11 |
|
- | ||||
| 8 | WPY703899 | Knob, Switch (blk) (Replaces: Y703899) | 11 |
|
Immediately | $ 21.09 | |||
| 9 | WP71001171 | Screw (Replaces: Y701379) | 11 |
|
$ 6.26 | ||||
| 9 | 00705463 | Clip (Replaces: 705463) | 11 |
|
Immediately | $ 445.30 | |||
| 10 | 3400855 | Screw 8-32 (Replaces: Y704426) | 11 |
|
- | ||||
| 11 | WP488130 | Nut (Replaces: Y701396) | 11 |
|
$ 6.27 | ||||
| NI | 16010241 | Manual, Service | 11 |
|
- |
