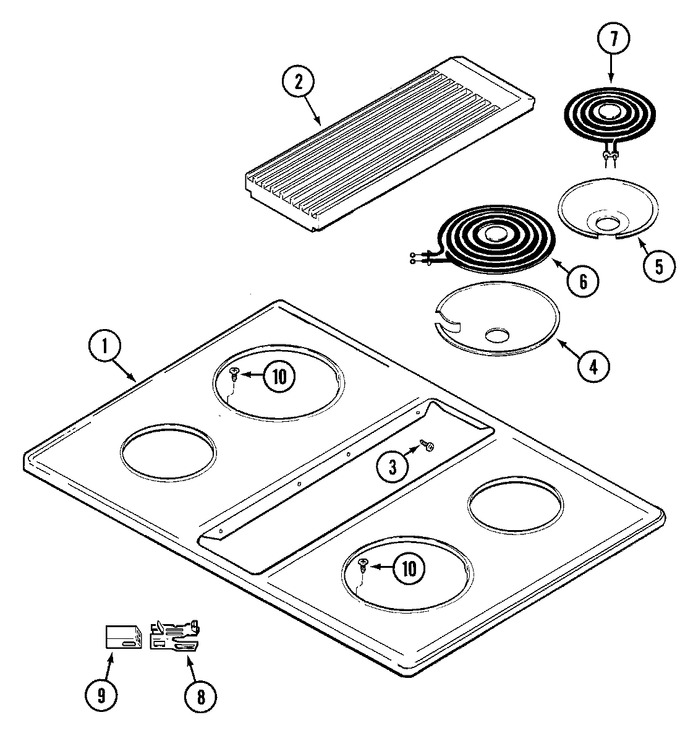

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Blower Plenum
02 - Burner Box Assembly
03 - Top Assembly
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | Y04100180 | Main Top (wht) | 11 |
|
- | ||||
| 2 | Y704603 | Grill, Air (wht) | 11 |
|
- | ||||
| 3 | W11233072 | Screw (Replaces: Y707347) | 11 |
|
Immediately | $ 12.62 | |||
| 4 | W10291024 | Bowl, Drip (8``-gry) (Replaces: Y04100196) | 11 |
|
Immediately | $ 49.90 | |||
| 5 | W10291024 | Bowl, Drip (6``-gry) (Replaces: Y04100195) | 11 |
|
Immediately | $ 49.90 | |||
| 6 | WPY04100166 | Element 8`` 5t Delta Blk (Replaces: Y04100166) | 11 |
|
Immediately | $ 47.21 | |||
| 7 | 703799 | Wire, Violet | 11 |
|
- | ||||
| 7 | 703800 | Wire, Yellow | 11 |
|
- | ||||
| 7 | WPY04100165 | Element 6`` 4t Delta Blk (Replaces: Y04100165) | 11 |
|
Immediately | $ 50.62 | |||
| 7 | 703618 | Wire, Ground | 11 |
|
- | ||||
| 7 | WPW10339879 | Tie, Cable (Replaces: 701678) | 11 |
|
$ 7.11 | ||||
| 8 | 12001676 | Receptacle (Replaces: Y04100394) | 11 |
|
Immediately | $ 28.45 | |||
| 9 | Y712355 | Bracket, Receptacle | 11 |
|
- | ||||
| 10 | WP74004005 | Screw (Replaces: Y703571) | 11 |
|
$ 6.95 |
