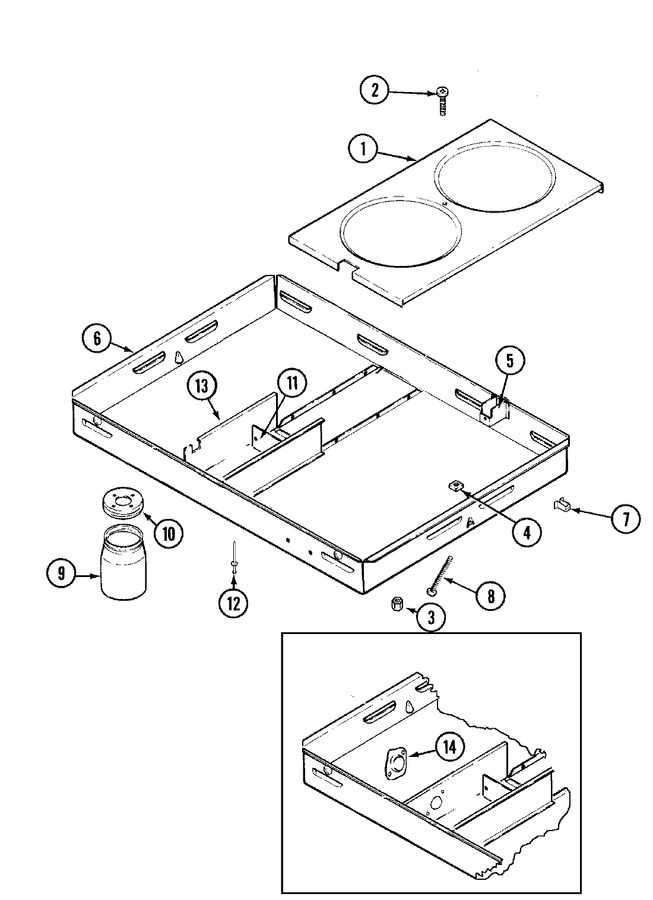

01 - Blower Plenum
02 - Burner Box Assy.
03 - Control Assembly
04 - Main Top
05 - Wiring Information
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | Y707822 | Insert, Burner Box | 11 |
|
- | ||||
| 2 | Y707402 | Screw | 11 |
|
- | ||||
| 3 | 715938 | Pad, Spacer | 11 |
|
- | ||||
| 3 | 703293 | Palnut | 11 |
|
- | ||||
| 4 | M0282009 | Nut,square (Replaces: Y707124) | 11 |
|
$ 12.06 | ||||
| 5 | W11233072 | Screw (Replaces: Y707347) | 11 |
|
Immediately | $ 12.62 | |||
| 5 | 703008 | Bracket, Top Support | 11 |
|
- | ||||
| 6 | 04100395 | Box, Burner | 11 |
|
- | ||||
| 7 | Y700503 | Clip, Retainer | 11 |
|
- | ||||
| 7 | WP90767 | Screw (Replaces: Y700502) | 11 |
|
Immediately | $ 7.04 | |||
| 8 | Y707121 | Screw | 11 |
|
- | ||||
| 9 | WPY707869 | Jar, Drain (Replaces: Y707869) | 11 |
|
$ 61.43 | ||||
| 10 | Y04100296 | Lid, Jar | 11 |
|
- | ||||
| 11 | 707746 | Insulator | 11 |
|
- | ||||
| 12 | WP210720 | Rivet (Replaces: 701662) | 11 |
|
$ 12.14 | ||||
| 12 | Y707664 | Washer | 11 |
|
- | ||||
| 13 | 04100396 | Baffle, Burner Box | 11 |
|
- | ||||
| 14 | Y704127 | Limiter, Thermal | 11 |
|
- | ||||
| 14 | 701925 | Limiter, Thermal | 11 |
|
- | ||||
| 14 | WP90767 | Screw (Replaces: Y700502) | 11 |
|
Immediately | $ 7.04 |
