SELECT A DIAGRAM

01 - Blower Plenum


02 - Burner Box Assy.


03 - Control Assembly


04 - Top Assembly


05 - Wiring Information

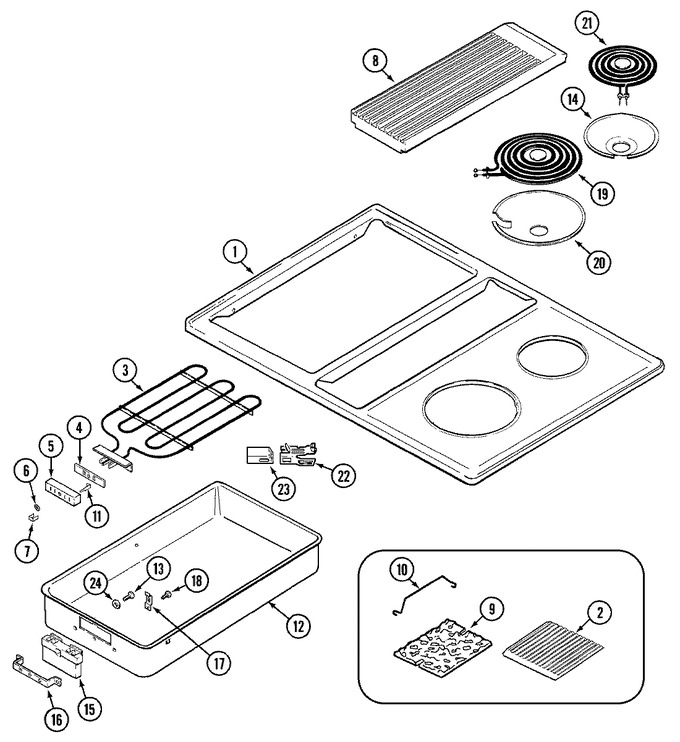

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	71001575		Top, Main (stls)	11	Appelez-nous	-
2	Y04100367		Grate, Grill (excalibur)	11	Appelez-nous	-
3	71001573		Element, Grill	11	Appelez-nous	-
3	WP74004005		Screw   (Replaces: Y703571)	11			$ 6.95
3	Y712619		Element, Complete	11	Appelez-nous	-
4	Y700449		Insulator	11	Appelez-nous	-
5	WPY708730		Block, Terminal   (Replaces: Y708730)	11		Immediately	$ 87.44
6	Y708862		Nut, Speed	11			$ 13.08
7	Y700450		Clip, Shunt	11			$ 9.51
8	71001576		Grill, Air	11	Appelez-nous	-
9	708929		Plate, Rock	11	Appelez-nous	-
10	700819		Support, Rock Plate	11			$ 71.81
11	Y708572		Spade, Contact	11		Immediately	$ 11.34
12	Y712200		Wire, Yellow	11	Appelez-nous	-
12	701955		Pan, Grill (lt)	11	Appelez-nous	-
12	Y712197		Wire, Brown	11	Appelez-nous	-
12	Y712203		Wire, Violet	11	Appelez-nous	-
12	Y701489		Contact/wire Assy. (blu-rt)	11	Appelez-nous	-
13	WP12990527		Screw   (Replaces: Y708955)	11		Immediately	$ 7.15
14	715877		Pan, Drip (6``)	11		Immediately	$ 19.39
15	WPY702434		Receptacle (ceramic)   (Replaces: Y702434)	11		Immediately	$ 96.61
16	Y702698		Bracket	11	Appelez-nous	-
17	74004835		Clip   (Replaces: Y702699)	11			$ 11.37
18	00489128		Screw   (Replaces: Y705026)	11			$ 773.97
19	WPY04100166		Element 8`` 5t Delta Blk   (Replaces: Y04100166)	11		Immediately	$ 47.21
20	715878		Pan, Drip (8``)	11		Immediately	$ 21.16
21	WPY04100165		Element 6`` 4t Delta Blk   (Replaces: Y04100165)	11		Immediately	$ 50.62
22	Y712355		Bracket, Receptacle	11	Appelez-nous	-
23	WP74007474		Receptacle, Ceramic   (Replaces: Y704146)	11		Immediately	$ 129.78
24	Y707664		Washer	11	Appelez-nous	-

    View Diagram in Separate Window       Print Part List
