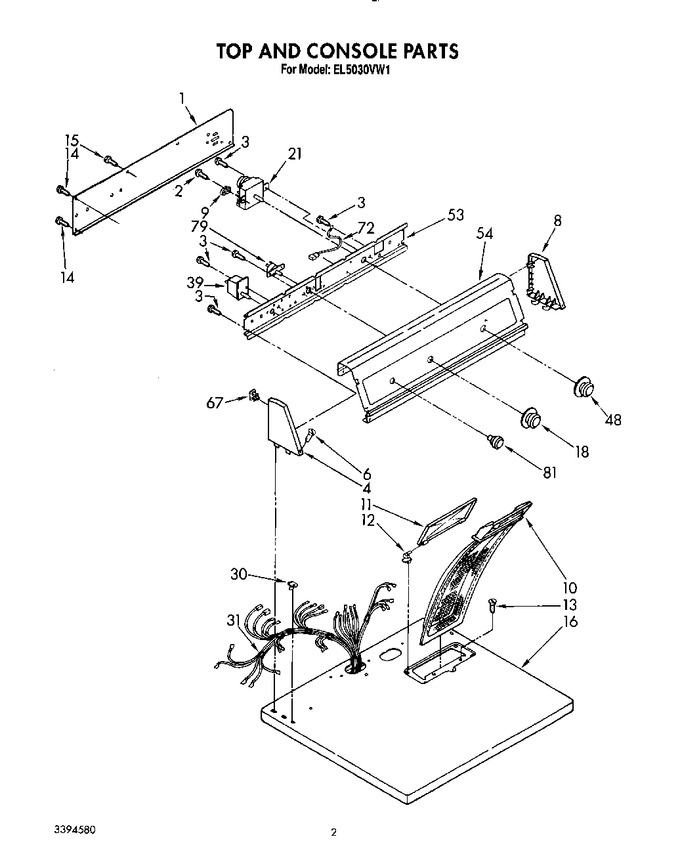

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 386367 | Panel, Rear Console |
|
- | |||||
| 2 | WP681414 | Screw,10-16 X 1/2 (Replaces: 343641) |
|
Immediately | $ 7.07 | ||||
| 3 | WP3390631 | Screw, 10-16 X 5/16 (Replaces: 339554) |
|
$ 7.04 | |||||
| 4 | 3352243 | Cap, End (l.h.) |
|
- | |||||
| 6 | WP388326 | Screw, 8-18 (Replaces: 64211) |
|
$ 7.30 | |||||
| 8 | 3352238 | Cap, End (r.h.) |
|
- | |||||
| 9 | 279872 | Resistor, Timer (Replaces: 3388706) |
|
$ 67.45 | |||||
| 10 | 339392V | Screen, Lint (Replaces: 337448) |
|
Immediately | $ 37.72 | ||||
| 11 | 688150 | Cover, Lint Screen (white) |
|
- | |||||
| 11 | 689310 | Cover, Lint Screen (almond) |
|
- | |||||
| 12 | WPW10044470 | Hinge, R.h. (Replaces: 339229) |
|
$ 6.95 | |||||
| 12 | WPW10044480 | Hinge, L.h. (Replaces: 339230) |
|
$ 6.95 | |||||
| 13 | W11693756 | Screw, 8-18 X 5/8 (Replaces: 688983) |
|
Immediately | $ 12.65 | ||||
| 14 | WP489069 | Screw (4) (Replaces: 693994) |
|
Immediately | $ 7.07 | ||||
| 15 | WP693995 | Screw (2) (Replaces: 693995) |
|
Immediately | $ 6.47 | ||||
| 16 | 3393386 | Top (almond) |
|
- | |||||
| 16 | 3393385 | Top (white) |
|
- | |||||
| 18 | 3352169 | Control Knob, Temperature |
|
- | |||||
| 21 | 3391650 | Timer & Resistor, 60 Hz. |
|
- | |||||
| 30 | 358473 | Nut, Push-in (2) |
|
$ 5.84 | |||||
| 31 | 3393991 | Harness, Wiring |
|
- | |||||
| 39 | 346364 | (alt.) |
|
- | |||||
| 39 | 692021 | (alt.) |
|
- | |||||
| 39 | 660936 | Switch, Push-to-start |
|
- | |||||
| 48 | 3391823 | Timer Knob Assembly |
|
- | |||||
| 53 | 3396009 | Bracket, Control |
|
- | |||||
| 54 | 3391777 | Panel, Control |
|
- | |||||
| 67 | 689559 | Clip, Push-on (4) |
|
- | |||||
| 72 | 690853 | Wire, Ground |
|
- | |||||
| 79 | 694720 | Switch, Temperature |
|
- | |||||
| 81 | 3391829 | Knob, Push-to-start |
|
- | |||||
| LIT3395420 | Use & Care Guide |
|
- | ||||||
| WP72107 | Paint, Touch-up (1/2oz.) (almond) (Replaces: 72107) |
|
$ 16.12 | ||||||
| LIT3391815 | Instructions, Installation |
|
- | ||||||
| 72017 | Paint, Touch-up 1/2 Oz. (white) |
|
Immediately | $ 11.07 | |||||
| 978883 | Almond (uncut) |
|
- | ||||||
| 799344 | Paint, Bulk (1 Qt.) (white) (uncut) |
|
$ 237.46 | ||||||
| 350941 | Leveler (thinner) |
|
- | ||||||
| 350938 | Paint, Pressurized Spray (12 Oz.) (primer,grey) |
|
- | ||||||
| 350930 | Paint, Pressurized Spray (12 Oz.) White |
|
Immediately | $ 34.39 | |||||
| 350956 | Paint, Spray 13 Oz. (almond) |
|
$ 46.30 | ||||||
| LIT3394580 | List, Service Parts |
|
- |
