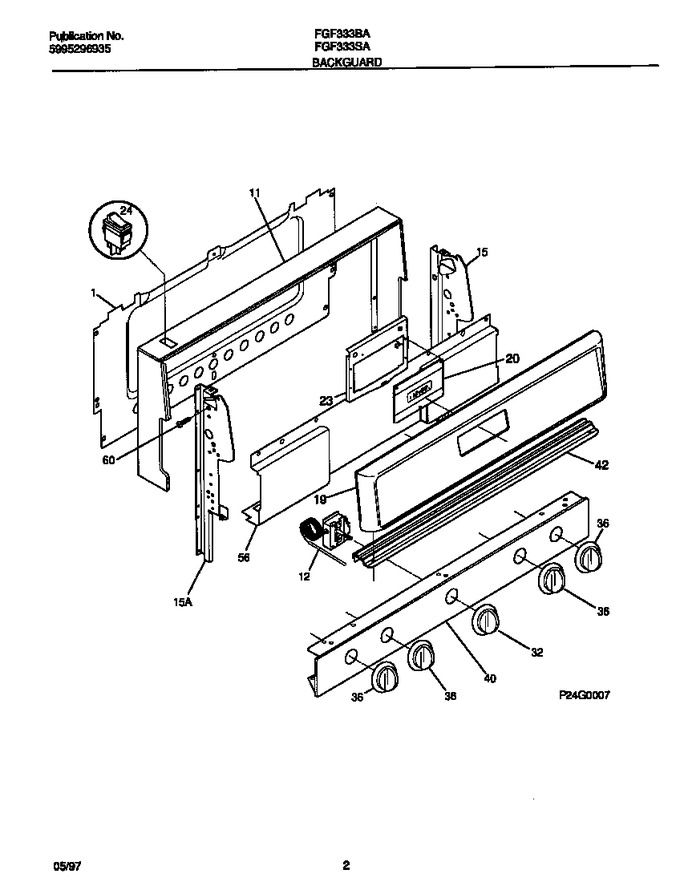

SELECT A DIAGRAM

01 - Cover


02 - Backguard


03 - Burner


04 - Body


05 - Top/drawer


06 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316028701		Shield-backguard, Rear Wall		Appelez-nous	-
11	316083704		Trim-wrapper, Black		Appelez-nous	-
12	316032411		Thermostat-oven   (Replaces: 5303271464)			Immediately	$ 165.14
15	316023109		Support,backguard ,lh		Appelez-nous	-
15	316023108		Support-backguard, Rh		Appelez-nous	-
19	316024405		Panel-control, Metal		Appelez-nous	-
23	316033203		Bracket-clock Mtg		Appelez-nous	-
24	5304527841		Switch-rocker, Oven Light, Black   (Replaces: 316005602)			Immediately	$ 11.38
32	316053600		Knob-thermostat		Appelez-nous	-
36	316049300		Knob-top Valve, (4)		Appelez-nous	-
40	316009267		Panel-manifold		Appelez-nous	-
42	316055200		Trim-vent		Appelez-nous	-
56	316074907		Deflector-flue, Black		Appelez-nous	-
60	316021109		Screw,hex, 8-18 X 3/8, Back\bodyside   (Replaces: 316021105)			Immediately	$ 27.50
*38680	316519700		Screw,cup Pt,8-18x3/8,hinge,ind Lt Brkt,manf Pnl   (Replaces: 316021108)				$ 10.02
*38681	5303288574		Screw, Truss Head, 8-10 X 0.375		Appelez-nous	-
20A	316097900		Clock/timer, Electronic		Appelez-nous	-
20B	316098000		Overlay-clock, Black (not Illustrated)		Appelez-nous	-
