SELECT A DIAGRAM

01 - Blower Plenum


02 - Burner Box Assy.


03 - Control Assembly


04 - Main Top


05 - Wiring Information

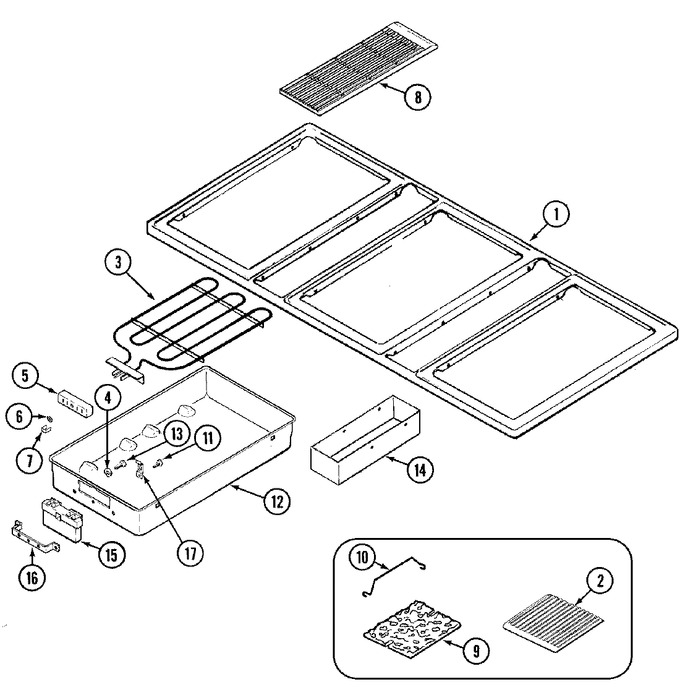

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	DE81-06343A		Top   (Replaces: 701852)	11			$ 161.49
2	Y04100367		Grate, Grill (excalibur)	11	Appelez-nous	-
3	WP74004005		Screw   (Replaces: Y703571)	11			$ 6.95
3	WP5700M426-60		Element, Grill (energy Saver)   (Replaces: 71001582)	11			$ 382.26
3	WP5700M426-60		Element, Grill   (Replaces: Y700452)	11			$ 382.26
4	Y707664		Washer	11	Appelez-nous	-
5	WPY708730		Block, Terminal   (Replaces: Y708730)	11		Immediately	$ 87.44
6	Y708862		Nut, Speed	11			$ 13.08
7	Y700450		Clip, Shunt	11			$ 9.51
8	71001576		Grill, Air	11	Appelez-nous	-
9	708929		Plate, Rock	11	Appelez-nous	-
10	700819		Support, Rock Plate	11			$ 71.81
11	00489128		Screw   (Replaces: Y705026)	11			$ 773.97
12	Y712199		Wire, Brown	11	Appelez-nous	-
12	WP5708M008-60		Wire, Violet   (Replaces: Y712202)	11			$ 87.19
12	Y701489		Contact/wire Assy. (blu-rt)	11	Appelez-nous	-
12	Y712197		Wire, Brown	11	Appelez-nous	-
12	WP5708M005-60		Contact/wire Assy. (blu-lt)   (Replaces: Y712029)	11			$ 86.45
12	Y712439		Wire, Brown	11	Appelez-nous	-
12	Y712200		Wire, Yellow	11	Appelez-nous	-
12	WP5708M007-60		Wire, Yellow   (Replaces: Y712201)	11			$ 117.23
12	Y712203		Wire, Violet	11	Appelez-nous	-
12	Y701956		Pan, Grill (rt)	11	Appelez-nous	-
12	701955		Pan, Grill (lt)	11	Appelez-nous	-
13	WP12990527		Screw   (Replaces: Y708955)	11		Immediately	$ 7.15
14	71001181		Box, Utensil	11	Appelez-nous	-
15	WPY702434		Receptacle (ceramic)   (Replaces: Y702434)	11		Immediately	$ 96.61
16	Y702698		Bracket	11	Appelez-nous	-
17	74004835		Clip   (Replaces: Y702699)	11			$ 11.37

    View Diagram in Separate Window       Print Part List
