View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Blower Plenum
02 - Burner Box Assy.
03 - Control Assembly
04 - Main Top
05 - Wiring Information
SELECT A DIAGRAM
New Model Search:

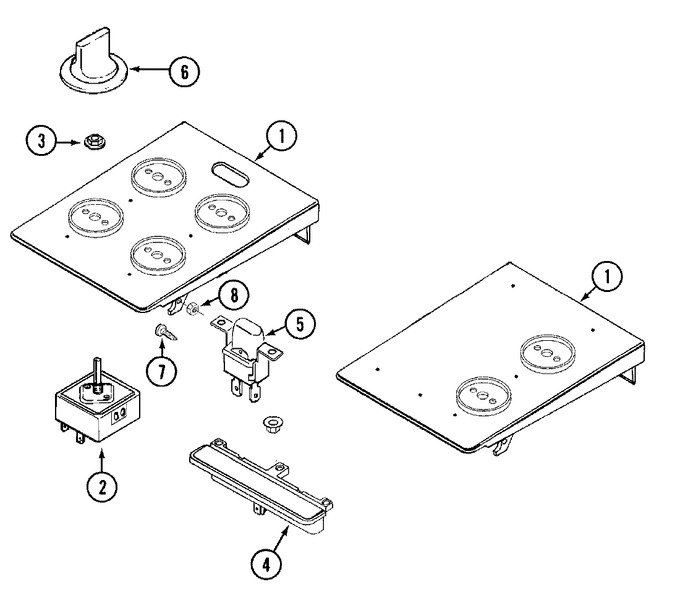

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 71001595 | Escutcheon (wht/rt) | 11 |
|
- | ||||
| 1 | 71001560 | Escutcheon | 11 |
|
- | ||||
| 2 | W11120791 | Switch, Infinite (Replaces: 703650) | 11 |
|
Immediately | $ 98.55 | |||
| 3 | 71001561 | Palnut | 11 |
|
- | ||||
| 4 | 71001562 | Box, Light Assy. | 11 |
|
- | ||||
| 5 | 12001452 | Relay, Fan (Replaces: 71001579) | 11 |
|
$ 179.93 | ||||
| 5 | W10341820 | Switch, Fan (wht) (Replaces: 71001563) | 11 |
|
$ 274.08 | ||||
| 6 | 71001572 | Knob, Inf Switch | 11 |
|
$ 20.52 | ||||
| 7 | 3400855 | Screw 8-32 (Replaces: Y704426) | 11 |
|
- | ||||
| 8 | WP488130 | Nut (Replaces: Y701396) | 11 |
|
$ 6.27 | ||||
| 8 | Y704864 | Screw | 11 |
|
- | ||||
| NI | 71001568 | Wire (blu-blk) | 11 |
|
- | ||||
| NI | 71001567 | Wire (ylw) | 11 |
|
- | ||||
| NI | 71001569 | Harness, Control | 11 |
|
- | ||||
| NI | 71001570 | Wire, Pilot Light | 11 |
|
- | ||||
| NI | 71001571 | Wire (wht) | 11 |
|
- | ||||
| NI | 71001593 | Wire, Pilot Light (lt) | 11 |
|
- | ||||
| NI | 71001566 | Wire (brn) | 11 |
|
- | ||||
| NI | EC001-00 | Manual, Service | 11 |
|
- | ||||
| NI | 71001591 | Manual, Use & Care | 11 |
|
- |
