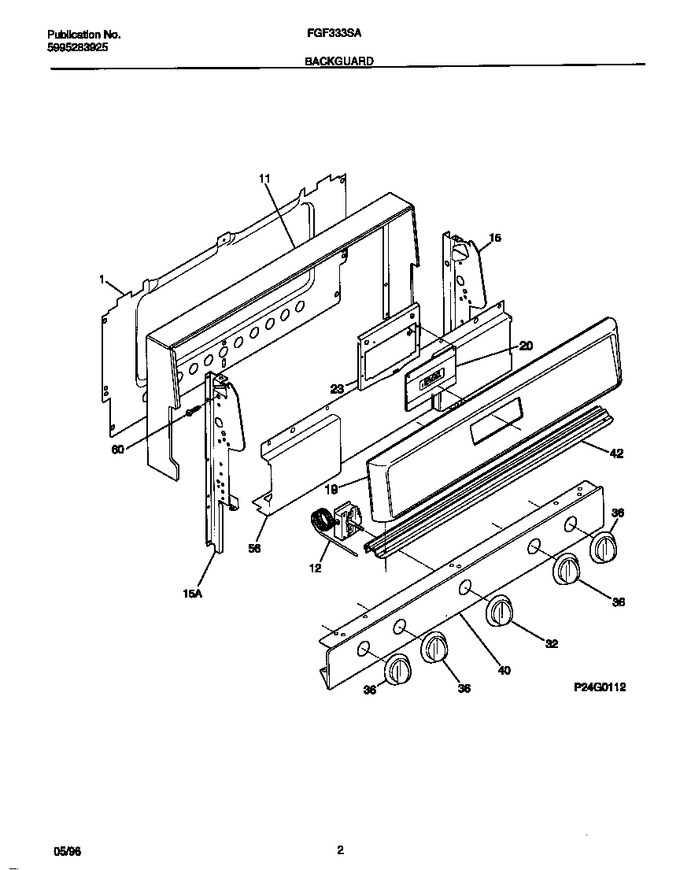

SELECT A DIAGRAM

01 - Cover


02 - Backguard


03 - Burner


04 - Body


05 - Top/drawer


06 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316028701		Shield-backguard, Rear Wall		Appelez-nous	-
11	316061846		Trim-wrapper, Black		Appelez-nous	-
12	316032411		Thermostat-oven   (Replaces: 5303271464)			Immediately	$ 165.14
15	316023111		Support-backguard, Lh		Appelez-nous	-
15	316023110		Support-backguard, Rh		Appelez-nous	-
19	316024405		Panel-control, Metal		Appelez-nous	-
20	316066800		Clock/timer, Electronic, Black		Appelez-nous	-
23	316033203		Bracket-clock Mtg		Appelez-nous	-
32	316053600		Knob-thermostat		Appelez-nous	-
36	316049300		Knob-top Valve, (4)		Appelez-nous	-
40	316009267		Panel-manifold		Appelez-nous	-
42	316055200		Trim-vent		Appelez-nous	-
56	316074902		Deflector-flue, Black		Appelez-nous	-
60	316021109		Screw,hex, 8-18 X 3/8, Back\bodyside   (Replaces: 316021105)			Immediately	$ 27.50
*18080	316519700		Screw, Cup Pt, 8-18 X 3/8   (Replaces: 316021108)				$ 10.02
*18081	5303288574		Screw, Truss Head, 8-10 X 3/8		Appelez-nous	-
