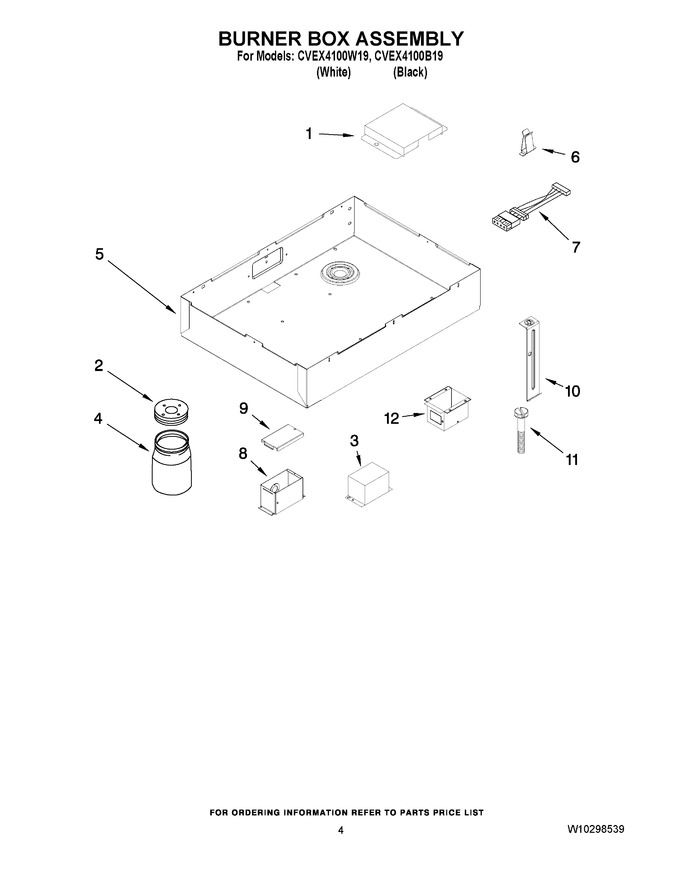

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 4005F524-80 | Cover, Block |
|
- | |||||
| 2 | 8312P123-60 | Jar, Lid |
|
- | |||||
| 3 | 4005F529-51 | Cover, Harness |
|
- | |||||
| 4 | WPY707869 | Jar, Drain (Replaces: 8312P120-60) |
|
$ 61.43 | |||||
| 5 | 4011F296-80 | Bottom, Burner |
|
- | |||||
| 6 | 8038P004-60 | Contact, Ground |
|
$ 16.22 | |||||
| 7 | 7408P081-60 | Receptacle |
|
$ 60.32 | |||||
| 8 | 4006W165-51 | Box, Junction |
|
- | |||||
| 9 | 4005F525-51 | Cover, Box |
|
- | |||||
| 10 | 8020P088-60 | Bracket, Tie-down |
|
$ 5.51 | |||||
| 11 | WP3400202 | Screw (Replaces: 7101P473-60) |
|
$ 13.65 | |||||
| 12 | 4005F528-51 | Cover, Wire |
|
- | |||||
| 12 | 4006W132-51 | Box, Wire |
|
- |
