01 - Blower Assembly (plenum)
02 - Burner Box
03 - Control Panel
04 - Top Assembly
05 - Wiring Information
06 - Wiring Information
SELECT A DIAGRAM
New Model Search:

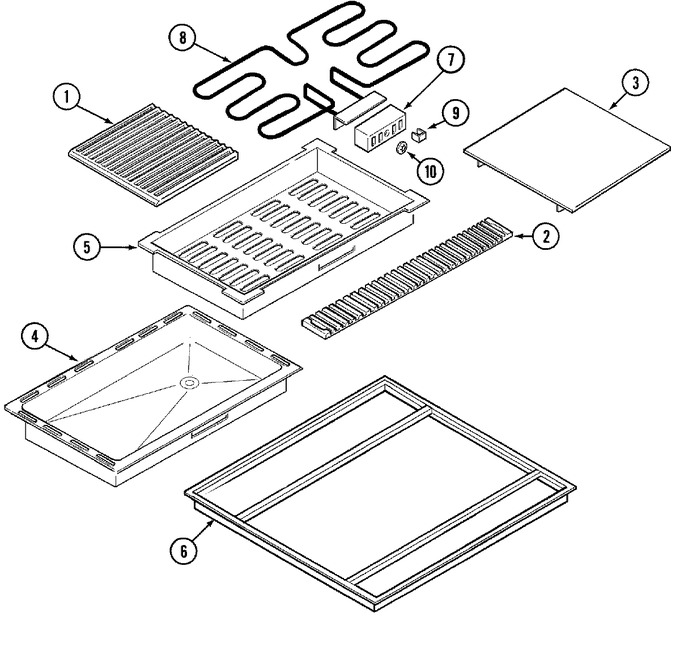

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | Y706059 | Grate, Grill (excalibur) | 12 |
|
$ 119.79 | ||||
| 2 | 71001673 | Grill, Air (wht) | 12 |
|
$ 92.64 | ||||
| 3 | 12200018 | Cover, Grill (white) | 12 |
|
- | ||||
| 4 | Y706002 | Pan, Grill | 12 |
|
- | ||||
| 4 | WPY708730 | Block, Terminal (Replaces: Y708730) | 12 |
|
Immediately | $ 87.44 | |||
| 5 | Y706003 | Liner, Pan | 12 |
|
- | ||||
| 6 | 71002585 | Top, Main | 12 |
|
- | ||||
| 6 | W11233072 | Screw (no.8ab) (Replaces: 71001183) | 12 |
|
Immediately | $ 12.62 | |||
| 7 | WPY708730 | Block, Terminal (Replaces: Y708730) | 12 |
|
Immediately | $ 87.44 | |||
| 8 | Y04100124 | Element, Grill | 12 |
|
$ 155.57 | ||||
| 9 | Y708862 | Nut, Speed | 12 |
|
$ 13.08 | ||||
| 10 | Y700450 | Clip, Shunt | 12 |
|
$ 9.51 |
