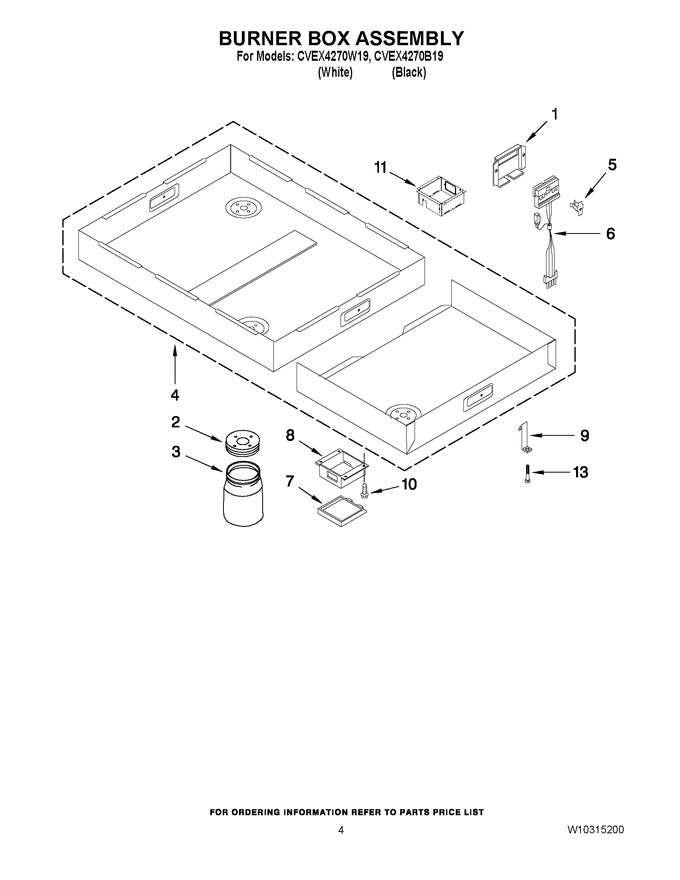

03 - Burner Box Assembly


04 - Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4005F524-80		Cover, Block		Appelez-nous	-
2	8312P123-60		Jar, Lid		Appelez-nous	-
3	WPY707869		Jar, Drain   (Replaces: 8312P120-60)				$ 61.43
4	4001F114-80		Bottom, Burner		Appelez-nous	-
5	8038P004-60		Contact, Ground				$ 16.22
6	7408P082-60		Receptacle (left (w/harness))				$ 65.64
6	7408P081-60		Receptacle (right)				$ 60.32
7	4006W165-51		Box, Junction		Appelez-nous	-
8	4005F525-51		Cover, Box		Appelez-nous	-
9	8020P088-60		Bracket, Tie-down				$ 5.51
10	WP3400202		Screw, 1/4-20 X5.0   (Replaces: 7101P473-60)				$ 13.65
11	4006W131-51		Box, Wire Double		Appelez-nous	-
13	WP71001171		Screw, 10-32 X.50   (Replaces: 7101P460-60)				$ 6.26
