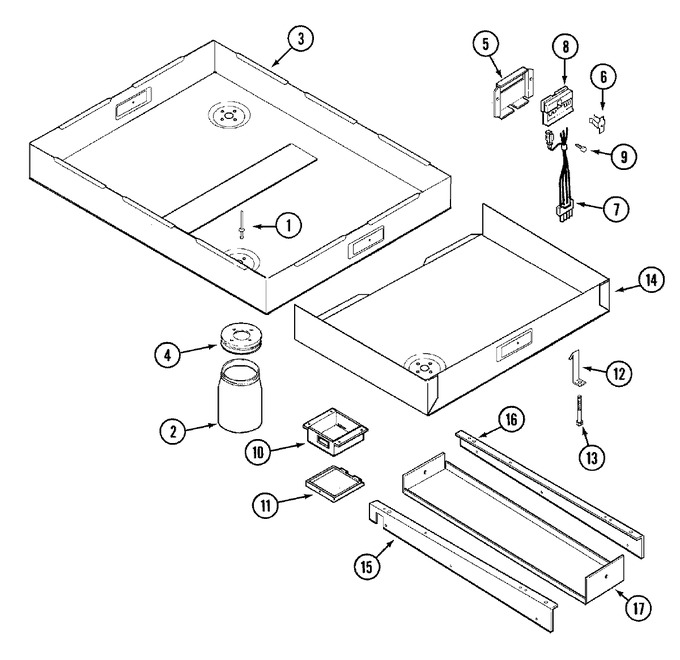

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP210720 | Rivet, Jar Lid (Replaces: Y707128) | 12 |
|
$ 12.14 | ||||
| 2 | WPY707869 | Jar, Drain (Replaces: Y707869) | 12 |
|
$ 61.43 | ||||
| 3 | Y706001 | Box, Burner | 12 |
|
- | ||||
| 3 | Y706088 | Harness, Double | 12 |
|
- | ||||
| 4 | Y707870 | Lid, Jar | 12 |
|
- | ||||
| 5 | Y706008 | Cover, Receptacle Block | 12 |
|
- | ||||
| 6 | Y706064 | Clip, Ground | 12 |
|
- | ||||
| 7 | Y706122 | Receptable W/harness (lt) | 12 |
|
- | ||||
| 7 | Y04100531 | Receptacle, R.h. | 12 |
|
- | ||||
| 7 | 71002571 | Receptacle, Rt (non-grill) | 12 |
|
- | ||||
| 8 | Y04100182 | Receptacle | 12 |
|
- | ||||
| 9 | WPW10068250 | Screw (Replaces: 706112) | 12 |
|
$ 3.66 | ||||
| 10 | Y706173 | Box, Junction | 12 |
|
- | ||||
| 11 | Y706174 | Cover, Junction Box | 12 |
|
- | ||||
| 12 | Y706186 | Strap, Hold Down | 12 |
|
- | ||||
| 13 | WP3400202 | Screw (Replaces: Y706197) | 12 |
|
$ 13.65 | ||||
| 14 | 71002572 | Box, Burner (triple) | 12 |
|
- | ||||
| 15 | 71002607 | Cover, Wire (back) | 12 |
|
- | ||||
| 16 | 71002608 | Cover, Wire (frt) | 12 |
|
- | ||||
| 17 | 71002609 | Cover, Wire (bottom) | 12 |
|
- |
