01 - Blower Assembly (plenum)


02 - Burner Box


03 - Control Panel


04 - Top Assembly


05 - Wiring Information


06 - Wiring Information

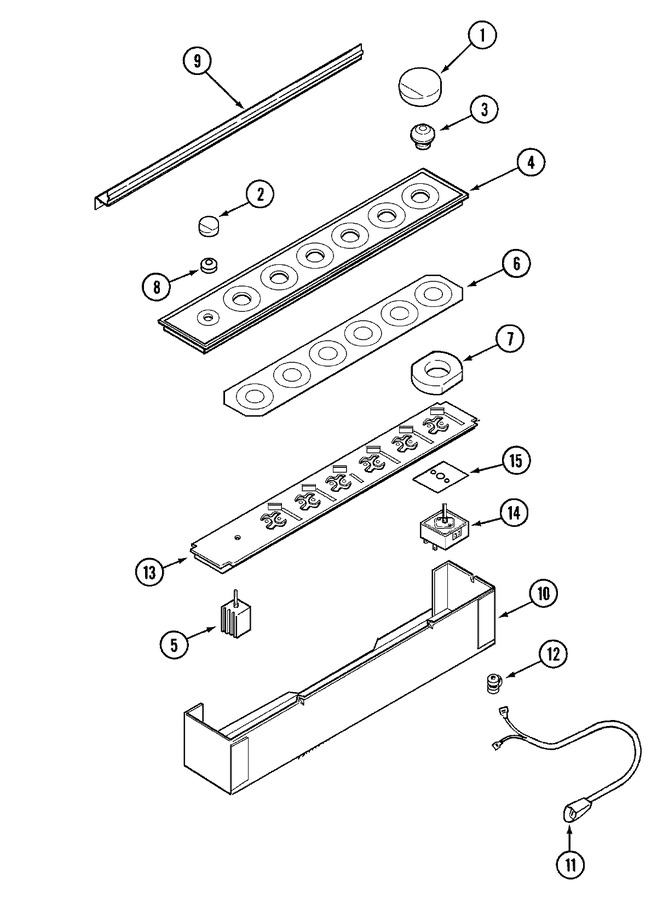

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	Y706096		Knob, Infinite Switch (gray)	12			$ 28.06
2	Y706097		Knob, Fan Switch (gry)	12			$ 14.56
3	71002371		Grommet, Spill (gry)	12	Appelez-nous	-
4	71002576		Panel, Control (wht)	12	Appelez-nous	-
5	04100193		Switch, Fan	12	Appelez-nous	-
5	74009256		Switch, Fan Control (see Note)				$ 92.67
6	71002570		Lens, Light	12	Appelez-nous	-
7	WP488234		Screw (no.8-1/4``)   (Replaces: 71002147)	12			$ 6.07
7	Y706061		Box, Light	12			$ 51.50
8	Y706103		Grommet, Fan Switch	12			$ 5.49
9	W11233072		Screw (no.8ab)   (Replaces: 71001183)	12		Immediately	$ 12.62
9	71002566		Bracket, Control Panel	12	Appelez-nous	-
10	71002567		Housing, Control	12	Appelez-nous	-
11	71002257		Cord, Receptacle	12	Appelez-nous	-
12	Y04100503		Relief, Strain	12	Appelez-nous	-
13	71002568		Plate, Switch	12	Appelez-nous	-
14	W11120791		Switch, Infinite   (Replaces: 703650)	12		Immediately	$ 98.55
15	WP71002569		Gasket, Infinite Switch   (Replaces: 71002569)	12		Immediately	$ 9.06
15	71002575		Pad, Switch----na	12	Appelez-nous	-
NI	706188		Wire, Ground	12	Appelez-nous	-
NI	WP71001171		Screw, Ground   (Replaces: 71001171)	12			$ 6.26
NI	71001714		Wire, Pilot Light	12	Appelez-nous	-
NI	74003045		Manual, Use & Care	12	Appelez-nous	-
NI	8111P181-60		Manual, Use & Care	16	Appelez-nous	-
NI	16010241		Manual, Service	12	Appelez-nous	-
NI	71002564		Harness, Wire	12	Appelez-nous	-
NI	Y04100119		Harness, Control	12	Appelez-nous	-
NI	WPW10339879		Tie, Cable   (Replaces: 701678)	12			$ 7.11
NI	71002565		Harness, Wire	12	Appelez-nous	-
NI	Y706088		Harness, Double	12	Appelez-nous	-
