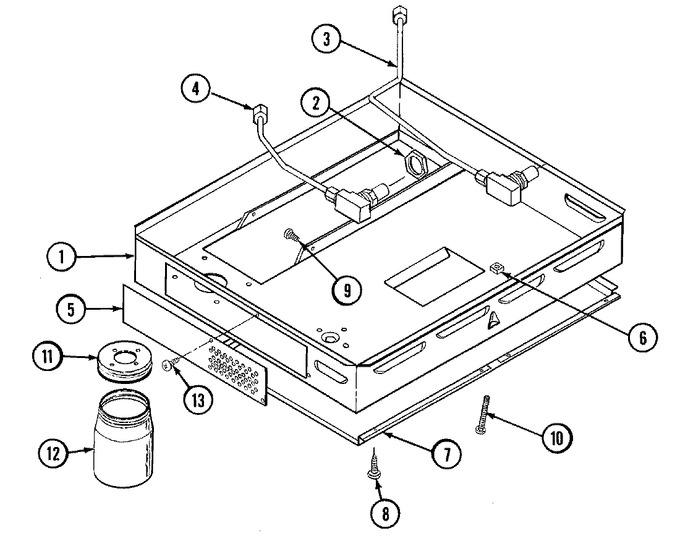

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 712474 | Box, Burner Assembly | 11 |
|
- | ||||
| 2 | Y704977 | Nut, 5/8`` Hex | 11 |
|
- | ||||
| 3 | 12200047 | Kit, Burner Tube | 11 |
|
$ 59.21 | ||||
| 4 | 12200046 | Kit, Burner Tube | 11 |
|
$ 76.53 | ||||
| 5 | WP74003976 | Washer (Replaces: 702592) | 11 |
|
$ 6.47 | ||||
| 5 | Y704385 | Cover, Front | 11 |
|
- | ||||
| 6 | M0282009 | Nut,square (Replaces: Y707124) | 11 |
|
$ 12.06 | ||||
| 7 | 3601F261-51 | Baffle, Bottom (lt) (Replaces: 704527) | 11 |
|
$ 216.98 | ||||
| 8 | W11233072 | Screw (no.8ab) (Replaces: 71001183) | 11 |
|
Immediately | $ 12.62 | |||
| 9 | WPW10253196 | Screw (Replaces: Y707113) | 11 |
|
$ 3.76 | ||||
| 10 | Y707121 | Screw | 11 |
|
- | ||||
| 11 | Y706006 | Lid, Jar | 11 |
|
- | ||||
| 11 | WP210720 | Rivet (Replaces: 701662) | 11 |
|
$ 12.14 | ||||
| 12 | WPY707869 | Jar, Drain (Replaces: Y707869) | 11 |
|
$ 61.43 | ||||
| 13 | WP12990527 | Screw (Replaces: Y708955) | 11 |
|
Immediately | $ 7.15 | |||
| NI | 12001809 | Lp Conversion Pack (Replaces: Y04100250) | 11 |
|
$ 50.27 |
