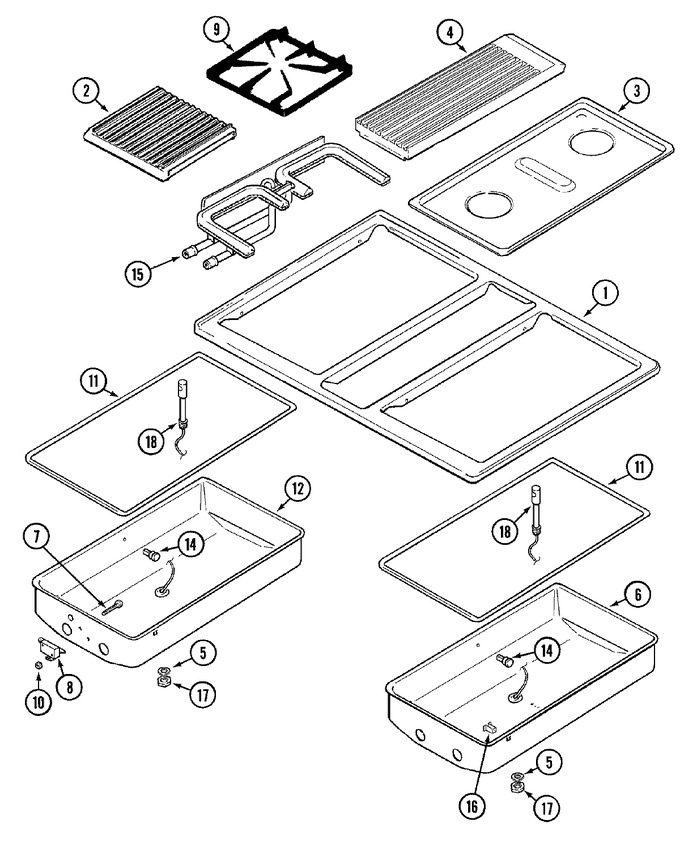

01 - Blower Assembly-plenum
02 - Body
03 - Control Assembly
04 - Top Assembly
05 - Wiring Information
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | Y04100404 | Top, Black | 11 |
|
- | ||||
| 2 | Y04100054 | Grate, Grill | 11 |
|
- | ||||
| 2 | 71003267 | Grate, Grill | 14 |
|
$ 157.17 | ||||
| 3 | Y712274 | Pan, Aeration (blk) | 11 |
|
- | ||||
| 4 | 71001648 | Grill, Air (blk) | 11 |
|
- | ||||
| 5 | 704568 | Lockwasher | 11 |
|
$ 13.02 | ||||
| 6 | 12200022 | Kit Grill Pan Lh | 11 |
|
- | ||||
| 7 | DE81-04441A | Screw (Replaces: 702380) | 11 |
|
$ 329.62 | ||||
| 8 | 7403P620-60 | Switch, Micro (Replaces: Y704533) | 11 |
|
$ 141.22 | ||||
| 8 | 715617 | Washer (teflon) | 11 |
|
- | ||||
| 9 | 12001481 | Grate, Burner (matte Blk) (Replaces: 71001058) | 11 |
|
$ 222.40 | ||||
| 10 | Y704534 | Insulator, Switch | 11 |
|
- | ||||
| 10 | Y704522 | Nut | 11 |
|
- | ||||
| 11 | Y704979 | Seal, Pan | 11 |
|
- | ||||
| 12 | Y04100517 | Pan, Grill | 11 |
|
- | ||||
| 14 | 71001764 | Pin, Grill Pan (Replaces: Y04100271) | 11 |
|
$ 8.68 | ||||
| 15 | WP90767 | Screw (Replaces: Y700502) | 11 |
|
Immediately | $ 7.04 | |||
| 15 | Y712601 | Burner, Grill | 11 |
|
$ 304.99 | ||||
| 16 | Y700503 | Clip, Retainer | 11 |
|
- | ||||
| 17 | Y703856 | Nut, Jam | 11 |
|
$ 5.53 | ||||
| 18 | WP71002179 | Ignitor, Spark (Replaces: 704535) | 11 |
|
$ 181.49 | ||||
| NI | Y052721 | Nut (Replaces: Y704553) | 11 |
|
$ 21.38 |
