SELECT A DIAGRAM

01 - Cover


02 - Backguard


03 - Burner


04 - Body


05 - Top/drawer


06 - Door

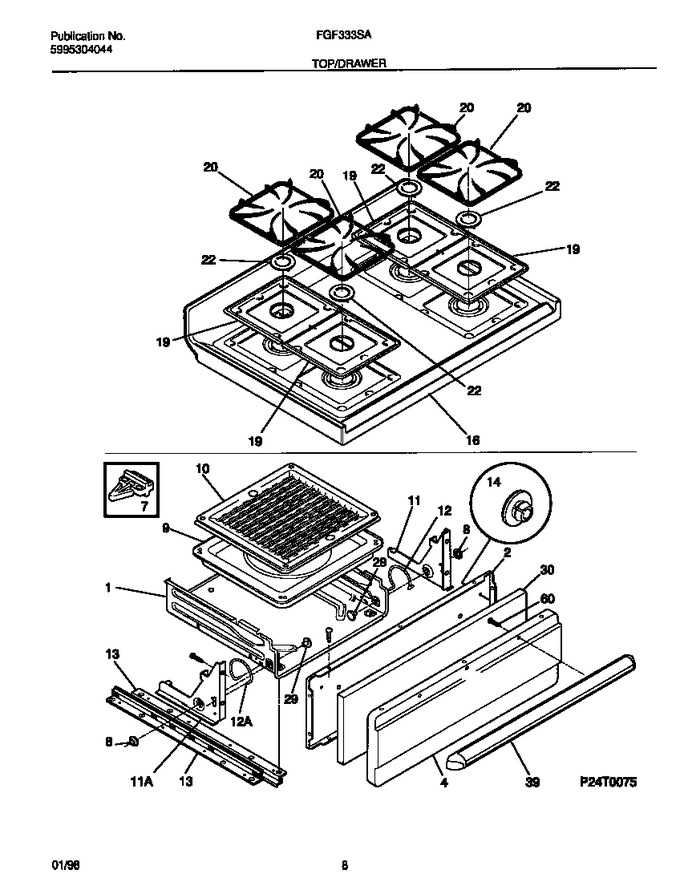

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3018608		Drawer-broiler		Appelez-nous	-
2	3202803		Liner, Broiler Door		Appelez-nous	-
4	316056205		Panel-drawer-white		Appelez-nous	-
7	3018610		Glide-broiler				$ 29.40
8	3131386		Nut, Push-on, (2)		Appelez-nous	-
9	5303013568		Pan-broiler		Appelez-nous	-
10	5303131356		Insert-broiler Pan		Appelez-nous	-
11	316066300		Bracket-hinge, Broiler Lh		Appelez-nous	-
11	316066301		Bracket-hinge, Broiler Rh		Appelez-nous	-
12	3018618		Spring-broiler, Lh		Appelez-nous	-
12	3018619		Spring-broiler, Rh		Appelez-nous	-
13	3131153		Channel-broiler		Appelez-nous	-
14	3206216		Plug-button, Glide		Appelez-nous	-
16	5303301546		Main Top, White		Appelez-nous	-
19	316011401		Pan-burner (4)				$ 20.58
20	316085305		Grate,(4)		Appelez-nous	-
22	316011014		Cap-burner, Matte Black, (4), Small		Appelez-nous	-
29	3018614		Pin-hinge		Appelez-nous	-
30	5303131258		Insulation, Broiler Drawer		Appelez-nous	-
39	316026100		Handle-drawer, Black		Appelez-nous	-
60	316089500		Screw, 10-16 X .486, Safety Valve, Handle, (4)				$ 13.46
*97777	316021109		Screw,hex, 8-18 X 3/8, Back\bodyside   (Replaces: 316021105)			Immediately	$ 27.50
*97778	316519700		Screw,cup Pt ,8-18 X 3/8 ,hinge ,ind Lght Brkt,manifold   (Replaces: 316021108)				$ 10.02
*97779	5303280311		Screw, Waf Hd Sdr, 10-32 X 5/16, (2)				$ 6.62
*97780	5303288567		Screw, 8-18 X 3/8, (4)		Appelez-nous	-
*97781	5303288574		Screw, Truss Head, 8-10 X 0.375, Handle, (3)		Appelez-nous	-
