SELECT A DIAGRAM

01 - Cover


02 - Backguard


03 - Burner

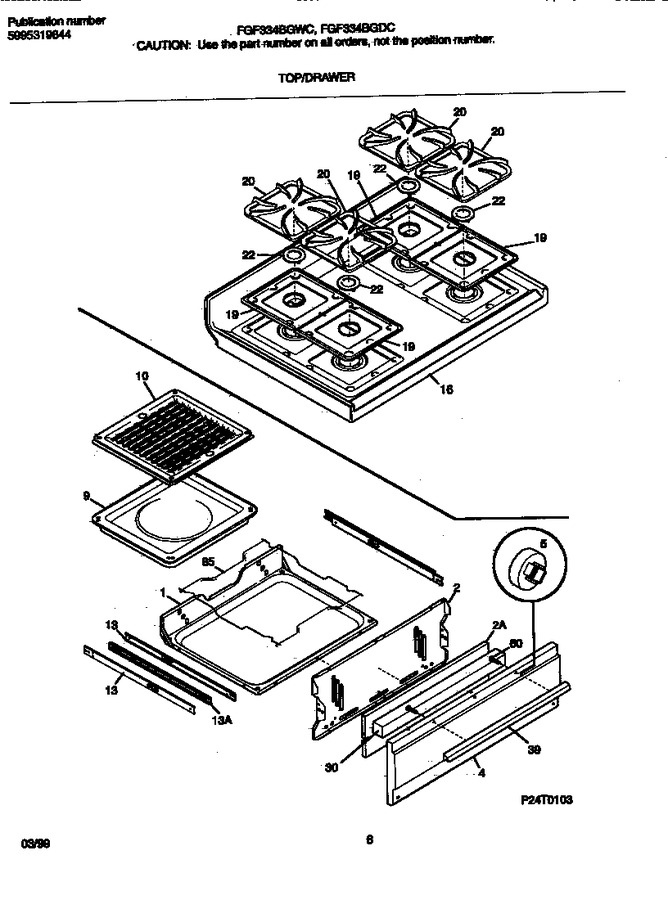

04 - Body


05 - Top/drawer


06 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316110201		Carriage, Broiler				$ 232.57
2	316110101		Liner-low Broil		Appelez-nous	-
2	316110800		Shield,broiler		Appelez-nous	-
4	316056206		Panel,drawer ,almond		Appelez-nous	-
5	3131387		Fastener-spacer, Push-in Nut, Nylon		Appelez-nous	-
9	316073800		Pan-broiler		Appelez-nous	-
10	3205234		Insert, Broiler Pan		Appelez-nous	-
13	316111600		Glide-drawer,inner		Appelez-nous	-
13	316111501		Glide-low Broil,outer		Appelez-nous	-
13	316111500		Glide-drawer,outer		Appelez-nous	-
16	5303301547		Main Top, Almond		Appelez-nous	-
19	316011401		Pan-burner, Black ,(4)				$ 20.58
20	316085201		Grate, Black		Appelez-nous	-
22	316098501		Cap-burner,black ,small		Appelez-nous	-
30	316111400		Insulation,broiler Drawer		Appelez-nous	-
39	316019508		Handle,drawer ,almond		Appelez-nous	-
60	316021109		Screw,hex, 8-18 X 3/8, Back\bodyside   (Replaces: 316021105)			Immediately	$ 27.50
85	316115600		Rack-low Broil				$ 105.47
*86133	316519700		Screw,cup Pt ,8-18 X 3/8 ,hinge ,ind Lght Brkt,manifold   (Replaces: 316021108)				$ 10.02
*86134	316021109		Screw-8-18x1/2 Tr Sqd Black   (Replaces: 316021110)			Immediately	$ 27.50
*86136	316021113		Screw-8-18x1/2 Tr Sqd Almond		Appelez-nous	-
*86137	5303280311		Screw, Waf Hd Sdr, 10-32 X 5/16, (2)				$ 6.62
