01 - Blower Assembly-plenum
02 - Body
03 - Control Panel
04 - Top Assembly
05 - Wiring Information
SELECT A DIAGRAM
New Model Search:

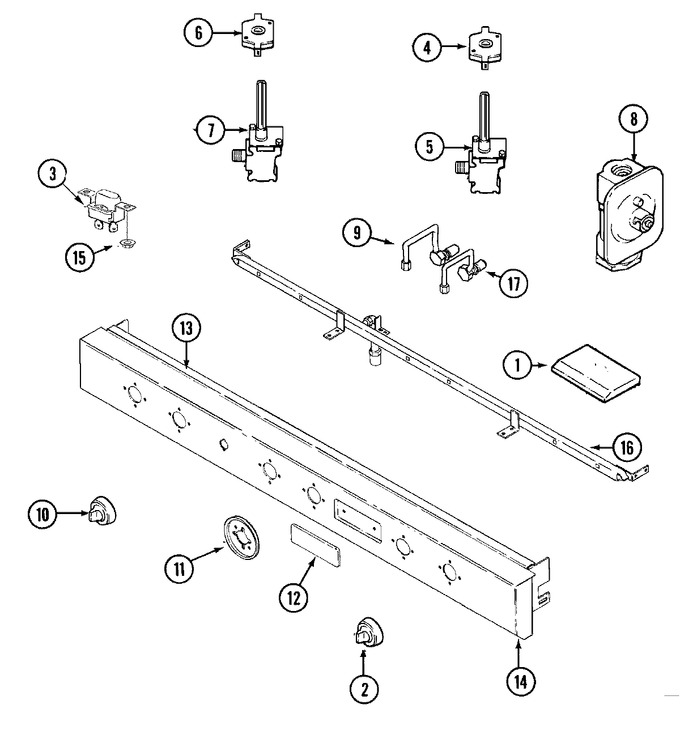

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 71001052 | Escutcheon | 11 |
|
- | ||||
| 2 | WP71001057 | Knob, Valve (blk) (Replaces: 71001057) | 11 |
|
$ 22.21 | ||||
| 3 | 71001047 | Switch, Rotary | 11 |
|
- | ||||
| 4 | Y704928 | Switch, Valve (rh) | 11 |
|
- | ||||
| 5 | Y04100184 | Valve, Gas (rt) | 11 |
|
$ 247.35 | ||||
| 6 | WPY704513 | Switch, Valve (lt) (Replaces: Y704513) | 11 |
|
$ 98.42 | ||||
| 7 | Y04100187 | Valve, Gas (lt) | 11 |
|
$ 144.22 | ||||
| 8 | W11106948 | Regulator, Pressure (Replaces: Y704545) | 11 |
|
Immediately | $ 215.01 | |||
| 9 | 71001046 | Tube, Burner (lf) | 11 |
|
- | ||||
| 9 | 71001045 | Tube, Burner (lr) | 11 |
|
- | ||||
| 10 | 71001042 | Knob, Fan | 11 |
|
- | ||||
| 11 | 71002978 | Bezel, Knob | 14 |
|
- | ||||
| 11 | 71001056 | Bezel, Knob (ss) | 11 |
|
- | ||||
| 12 | 71001894 | Nameplate (j/a) | 11 |
|
- | ||||
| 13 | 71001048 | Support, Control Panel | 11 |
|
- | ||||
| 14 | 71001900 | Panel, Control (lwr-cpr) | 11 |
|
- | ||||
| 14 | 71001899 | Panel, Control (upr-cpr) | 11 |
|
- | ||||
| 15 | 7103P166-60 | Palnut (Replaces: 715500) | 11 |
|
$ 15.91 | ||||
| 16 | 71001040 | Manifold | 11 |
|
- | ||||
| 17 | Y705019 | Screw | 11 |
|
- | ||||
| 17 | 71001043 | Tube, Burner (cr, Rr) | 11 |
|
- | ||||
| 17 | 71001044 | Tube, Burner (cf, Rf) | 11 |
|
- | ||||
| NI | 71001049 | Wire Harness, Gas (rt) | 11 |
|
- | ||||
| NI | Y04100792 | Harness, Wire | 11 |
|
- | ||||
| NI | Y04100687 | Lp Conversion Kit | 11 |
|
- | ||||
| NI | 71001051 | Wire Harness, Gas (lt) | 11 |
|
- | ||||
| NI | 71001905 | Manual, Use & Care | 11 |
|
- | ||||
| NI | 16000326 | Guide, Quick Ref - Jenn-air | 11 |
|
- |
