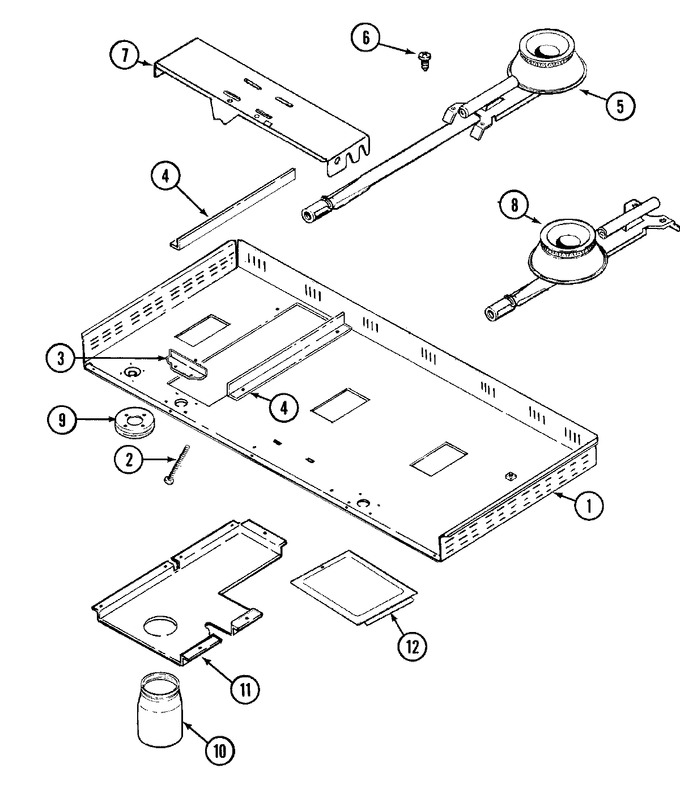

01 - Blower Assembly-plenum
02 - Body
03 - Control Panel
04 - Top Assembly
05 - Wiring Information
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 71001050 | Bottom, Burner Box | 11 |
|
- | ||||
| 2 | WP3400202 | Screw (Replaces: Y706197) | 11 |
|
$ 13.65 | ||||
| 3 | 04100806 | Bracket, Front | 11 |
|
- | ||||
| 4 | 04100805 | Bracket, Side | 11 |
|
- | ||||
| 5 | 74005189 | Burner, Rear (Replaces: Y705402) | 11 |
|
$ 211.73 | ||||
| 6 | WP90767 | Screw (Replaces: Y700502) | 11 |
|
Immediately | $ 7.04 | |||
| 7 | WP3801F403-80 | Bracket, Burner (Replaces: Y704519) | 11 |
|
$ 71.17 | ||||
| 8 | WP7505P283-60 | Burner, Front (Replaces: Y705401) | 11 |
|
$ 211.46 | ||||
| 9 | Y706006 | Lid, Jar | 11 |
|
- | ||||
| 10 | WPY707869 | Jar, Drain (Replaces: Y707869) | 11 |
|
$ 61.43 | ||||
| 11 | 3601F261-51 | Baffle, Bottom (lt) (Replaces: 704527) | 11 |
|
$ 216.98 | ||||
| 12 | 702333 | Cover, Access(r.h) | 11 |
|
- | ||||
| 12 | 71001055 | Plate, Cover | 11 |
|
- | ||||
| 12 | WP12990527 | Screw (Replaces: Y708955) | 11 |
|
Immediately | $ 7.15 |
