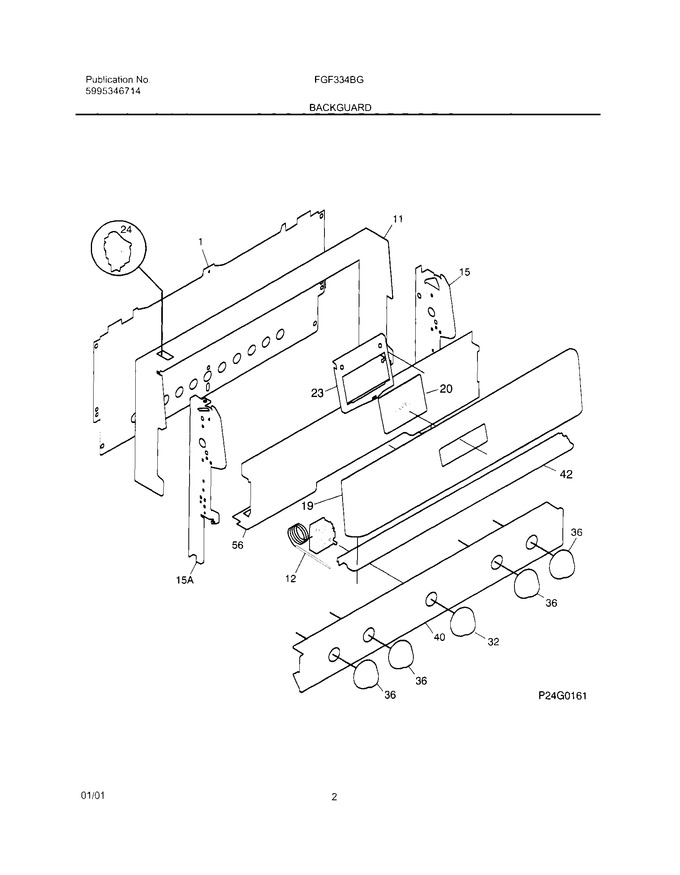

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316028700		Shield-backguard,galv ,rear Wall		Appelez-nous	-
11	316083718		Trim-wrapper,black ,textured,w/hole		Appelez-nous	-
12	316032411		Thermostat   (Replaces: 316032404)			Immediately	$ 165.14
15	316023108		Support-backguard, Rh		Appelez-nous	-
15	316023109		Support,backguard ,lh		Appelez-nous	-
19	316100531		Panel-backguard Control,black		Appelez-nous	-
20	316120500		Clock-timer		Appelez-nous	-
23	316033204		Bracket-timer		Appelez-nous	-
24	5304527841		Switch-oven Light,rocker ,black   (Replaces: 316118100)			Immediately	$ 11.38
32	316109506		Knob,thermostat ,black				$ 67.20
36	316109512		Knob-top Valve,black				$ 62.27
40	316086831		Panel-manifold, Black		Appelez-nous	-
42	316055200		Trim-vent,black		Appelez-nous	-
56	316074907		Deflector-flue, Black		Appelez-nous	-
NI	316021109		Screw,8-18 X 0.500 ,black   (Replaces: 316021110)			Immediately	$ 27.50
NI	316098007		Overlay-clock,black		Appelez-nous	-
NI	316021109		Screw,hex Head Cup Pt ,8-18 X 0.375 ,black,back/bodyside   (Replaces: 316021105)			Immediately	$ 27.50
NI	316519700		Screw,cup Pt ,8-18 X 0.375 ,chrome ,hinge,ind Light,manifold Panel   (Replaces: 316021108)				$ 10.02
