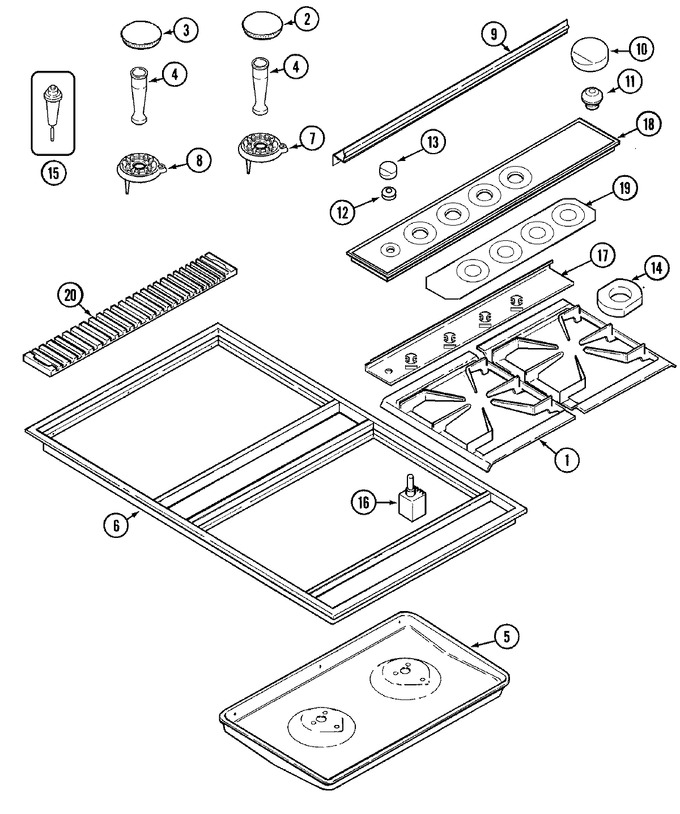

01 - Blower Plenum
02 - Body
03 - Top Assembly
04 - Wiring Information
05 - Wiring Information
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 71001004 | Grate (blk) | 10 |
|
- | ||||
| 2 | 71002787 | Cap, Burner (smr-blk) | 10 |
|
- | ||||
| 2 | 74007187 | Cap, Burner (smr-blk) | 14 |
|
- | ||||
| 3 | 74007199 | Cap, Burner (lg-blk) | 14 |
|
- | ||||
| 3 | 71002740 | Cap, Burner (lg-blk) | 10 |
|
- | ||||
| 4 | WP7538P003-60 | Venturi (Replaces: 71002747) | 10 |
|
$ 88.55 | ||||
| 5 | 71002786 | Pan, Aeration (blk) | 10 |
|
- | ||||
| 6 | 71002558 | Top | 10 |
|
- | ||||
| 7 | WP7540P028-60 | Base, Burner (smr) (Replaces: 71002784) | 10 |
|
$ 48.41 | ||||
| 7 | WP7540P028-60 | Burner, Base (smr) (Replaces: 74007181) | 14 |
|
$ 48.41 | ||||
| 8 | 71002743 | Base, Burner (lg) | 10 |
|
- | ||||
| 8 | 74007183 | Burner, Base (lrg) | 14 |
|
- | ||||
| 9 | WPY706189 | Screw (Replaces: Y706189) | 10 |
|
Immediately | $ 6.47 | |||
| 9 | 71002566 | Bracket, Control Panel | 10 |
|
- | ||||
| 10 | WP71002372 | Knob, Burner (blk) (Replaces: 71002372) | 10 |
|
Immediately | $ 18.16 | |||
| 11 | WP8008P071-60 | Grommet, Spill (blk) (Replaces: 71002370) | 10 |
|
$ 8.02 | ||||
| 12 | Y706103 | Grommet, Fan Switch | 10 |
|
$ 5.49 | ||||
| 13 | W11715914 | Knob, Fan Switch (blk) (Replaces: Y706036) | 10 |
|
Immediately | $ 36.14 | |||
| 14 | Y706061 | Box, Light | 10 |
|
$ 51.50 | ||||
| 15 | WP7432P109-60 | Igniter (Replaces: 71002724) | 10 |
|
$ 47.83 | ||||
| 16 | WP74009254 | Switch, Fan Control (Replaces: 71001303) | 10 |
|
Immediately | $ 192.13 | |||
| 16 | Y703356 | Nut, Hex 3/8`` | 10 |
|
- | ||||
| 16 | WP7403P876-60 | Switch, Fan Control (Replaces: 74009255) |
|
$ 182.22 | |||||
| 17 | 71003219 | Fastener, Push-in | 11 |
|
- | ||||
| 17 | 71002559 | Plate, Switch | 10 |
|
- | ||||
| 17 | 71002568 | Plate, Switch | 11 |
|
- | ||||
| 18 | 71002773 | Panel, Control (blk) | 10 |
|
- | ||||
| 19 | 71002580 | Lens, Light | 10 |
|
- | ||||
| 20 | Y706005 | Grill, Air (blk) | 10 |
|
$ 92.64 | ||||
| NI | Y04100535 | Wire, White (18``) | 10 |
|
- | ||||
| NI | Y04100536 | Wire, White (30``) | 10 |
|
- | ||||
| NI | 71002788 | Manual, Use & Care | 10 |
|
- | ||||
| NI | 71002822 | Manual, Use & Care (fch) | 10 |
|
- | ||||
| NI | 16000326 | Guide, Quick Ref - Jenn-air | 10 |
|
- | ||||
| NI | 71002785 | Kit, Lp Orifice | 10 |
|
$ 31.72 | ||||
| NI | 71001383 | Harness, Wire (upr) | 10 |
|
- | ||||
| NI | 71002770 | Harness, Wire | 10 |
|
- | ||||
| NI | Y04100378 | Wire, Orange (18``) | 10 |
|
- | ||||
| NI | 71001159 | Wire, Brown (38``) | 10 |
|
- |
