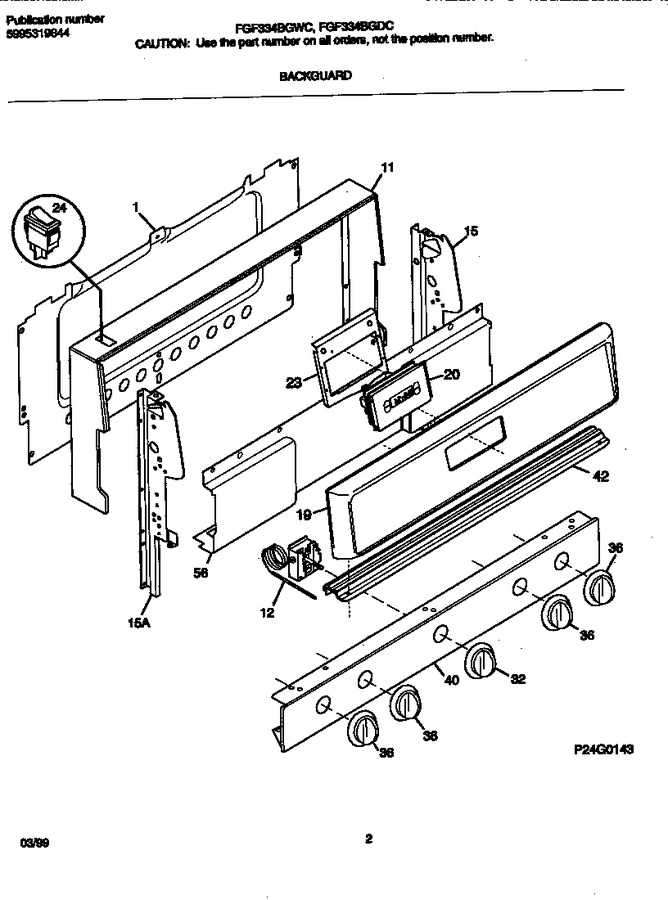

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316028701		Shield-backguard, Rear Wall		Appelez-nous	-
11	316083718		Trim-wrapper,black		Appelez-nous	-
12	316032411		Thermostat   (Replaces: 316032404)			Immediately	$ 165.14
15	316023108		Support-backguard, Rh		Appelez-nous	-
15	316023109		Support,backguard ,lh		Appelez-nous	-
19	316100531		Panel-bg G Beta Fr Blk Cm		Appelez-nous	-
20	316097901		Clock/timer, Electronic		Appelez-nous	-
23	316033204		Bracket-timer		Appelez-nous	-
24	5304527841		Switch-rocker, Oven Light, Black   (Replaces: 316005602)			Immediately	$ 11.38
32	316109506		Knob,thermostat ,black				$ 67.20
36	316109502		Knob-top Valve,black		Appelez-nous	-
40	316086831		Panel-manifold, Black		Appelez-nous	-
42	316055200		Trim-vent		Appelez-nous	-
56	316074907		Deflector-flue, Black		Appelez-nous	-
60	316021109		Screw,hex, 8-18 X 3/8, Back\bodyside   (Replaces: 316021105)			Immediately	$ 27.50
*86120	316081303		Shield-oven Door, Black, Top		Appelez-nous	-
*86121	316519700		Screw,cup Pt ,8-18 X 3/8 ,hinge ,ind Lght Brkt,manifold   (Replaces: 316021108)				$ 10.02
*86122	316021109		Screw-8-18x1/2 Tr Sqd Black   (Replaces: 316021110)			Immediately	$ 27.50
*86123	316112500		Template, Anti-tip Bracket				$ 3.55
*86124	316098000		Overlay-clock,black		Appelez-nous	-
